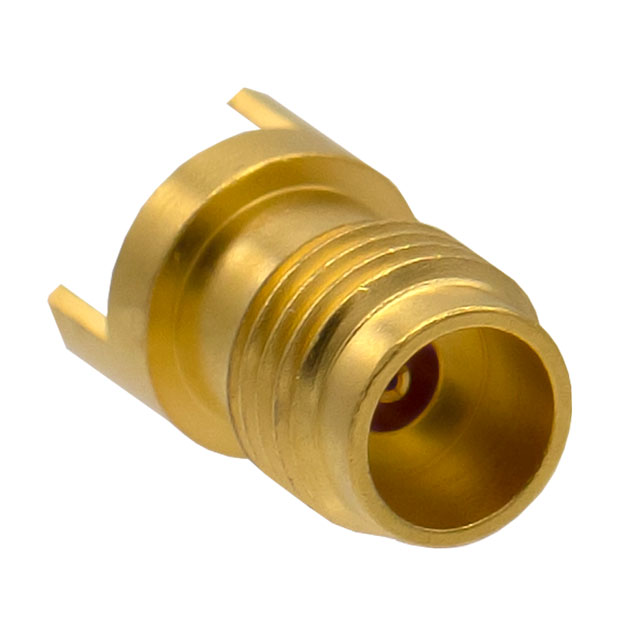

Cinch Connectivity Solutions Johnson 147-0701-271
Image shown is a representation only
Manufacturer
Manufacturer No
147-0701-271
Packaging
Bulk
Description
2.4MM END LAUNCH JACK FOR .093"
Detailed Description
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
150 V
Connector Style
2.4mm (APC-2.4, OS-50)
Frequency - Max
50 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
147-0701
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 150 V |
| Connector Style | 2.4mm (APC-2.4, OS-50) |
| Frequency - Max | 50 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 147-0701 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
