Step1: Product

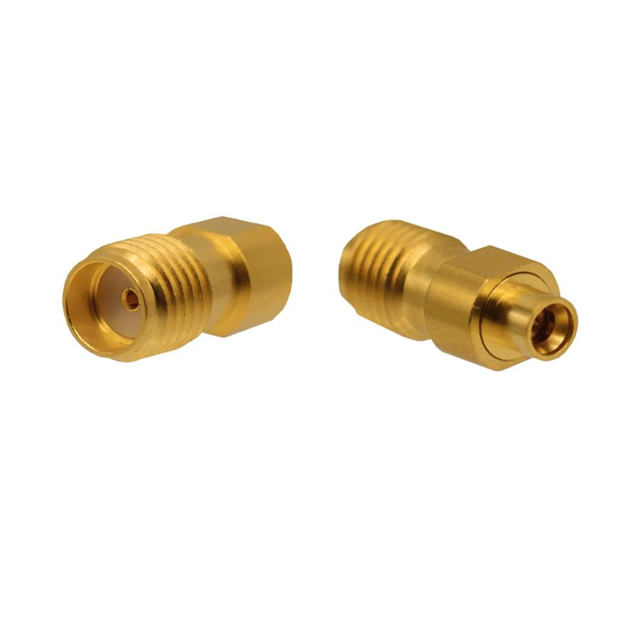

Cinch Connectivity Solutions Johnson 134-1001-004
Image shown is a representation only
Manufacturer
Manufacturer No
134-1001-004
Packaging
Bag
Description
COAX ADAPT SMA TO SMPM
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To SMPM Plug, Male Pin 50 Ohms
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Style
Straight
Features
Full Detent
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Beryllium Copper, Brass
Center Gender
Female to Male
Mating Cycles
100, 500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMA to SMPM
Fastening Type
Snap-On, Threaded
Conversion Type
Between Series
Frequency - Max
26.5 GHz
Base Product Number
134-1001
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMPM Plug, Male Pin
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Style | Straight |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Beryllium Copper, Brass |
| Center Gender | Female to Male |
| Mating Cycles | 100, 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMA to SMPM |
| Fastening Type | Snap-On, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 26.5 GHz |
| Base Product Number | 134-1001 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMPM Plug, Male Pin |
| Convert From (Adapter End) | SMA Jack, Female Socket |
