Step1: Product

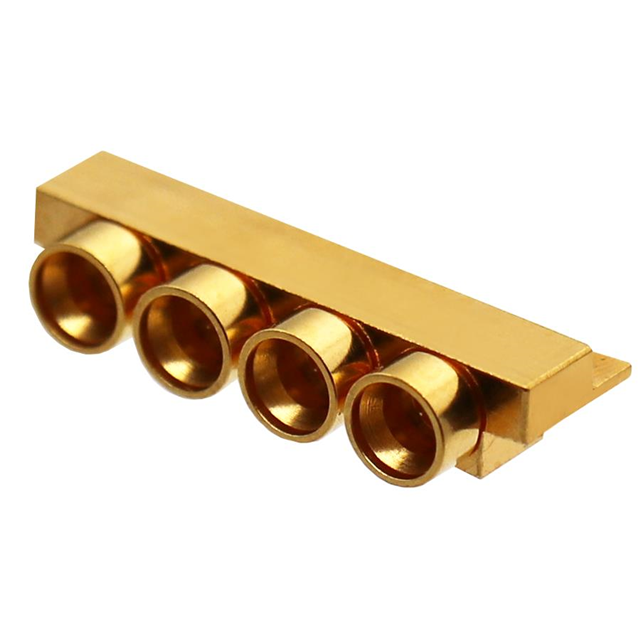

Cinch Connectivity Solutions Johnson 125-0701-831
Image shown is a representation only
Manufacturer
Manufacturer No
125-0701-831
Packaging
Bag
Description
SMPM MALE FULL DETENT 4-PORT PCB
Detailed Description
SMPM Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
Datasheet
Mfr
Cinch Connectivity Solutions Johnson
Features
Full Detent
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Body Material
Beryllium Copper, Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Board Edge, Cutout; Surface Mount
Connector Type
Plug, Male Pin
Fastening Type
Snap-On
Voltage Rating
325 V
Connector Style
SMPM
Frequency - Max
65 GHz
Number of Ports
4
Shield Termination
Solder
Base Product Number
125-0701
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Body Material | Beryllium Copper, Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Board Edge, Cutout; Surface Mount |
| Connector Type | Plug, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 325 V |
| Connector Style | SMPM |
| Frequency - Max | 65 GHz |
| Number of Ports | 4 |
| Shield Termination | Solder |
| Base Product Number | 125-0701 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
