Step1: Product
Cinch Connectivity Solutions Johnson 125-0701-251

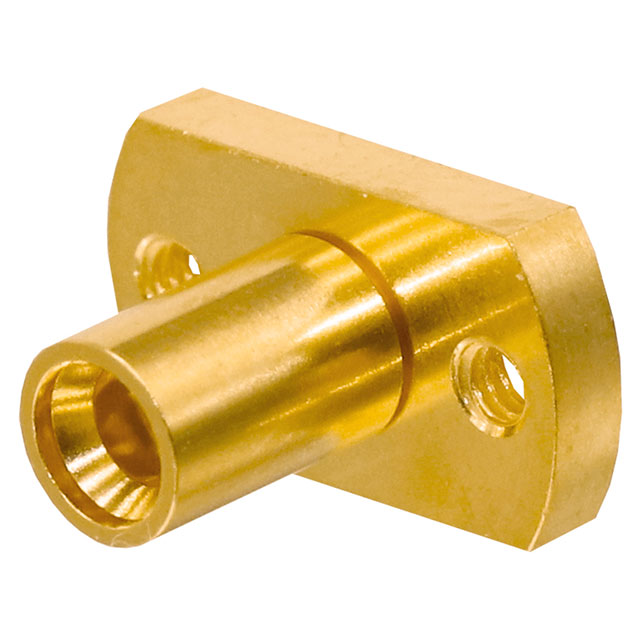

Image shown is a representation only
Manufacturer
Manufacturer No
125-0701-251
Packaging
Bag
Description
SMPM COMPRESSION CONNECTOR, STRI
Detailed Description
SMPM Connector Jack, Male Pin 50 Ohms Surface Mount
Datasheet
Mfr
Cinch Connectivity Solutions Johnson
Features
Full Detent
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Body Material
Beryllium Copper, Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
325 V
Connector Style
SMPM
Frequency - Max
65 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Compression
Base Product Number
125-0701
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Body Material | Beryllium Copper, Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 325 V |
| Connector Style | SMPM |
| Frequency - Max | 65 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Compression |
| Base Product Number | 125-0701 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
