Step1: Product

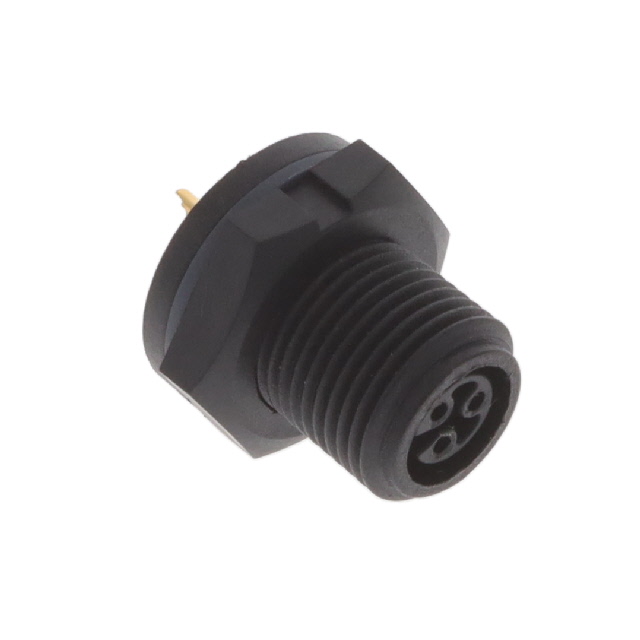

Chogori Technologies Inc. 21003615-01
Image shown is a representation only
Manufacturer
Manufacturer No
21003615-01
Packaging
Bulk
Description
CONN RCPT FMALE 3POS SOLDER CUP
Detailed Description
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Chogori Technologies Inc.
Color
Black
Series
MINI
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Obsolete
Termination
Solder Cup
Applications
Communication Systems, Industrial, Lighting, Medical
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
50V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass, Phosphor Bronze
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Number of Positions
3
Current Rating (Amps)
5A
Operating Temperature
-45°C ~ 105°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Chogori Technologies Inc. |
| Color | Black |
| Series | MINI |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial, Lighting, Medical |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | 50V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass, Phosphor Bronze |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Number of Positions | 3 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -45°C ~ 105°C |
| Contact Finish - Mating | Gold |
