Step1: Product

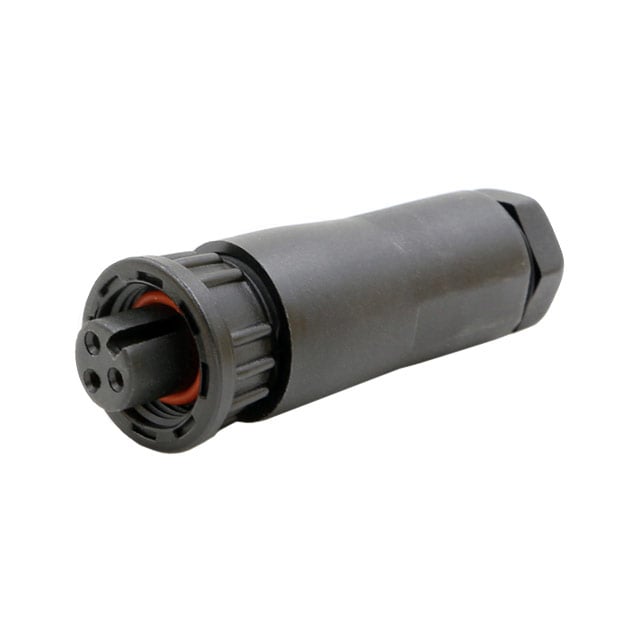

Chogori Technologies Inc. 21003211-01
Image shown is a representation only
Manufacturer
Manufacturer No
21003211-01
Packaging
Bulk
Description
CONN PLUG FMALE 3POS SOLDER CUP
Detailed Description
3 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Chogori Technologies Inc.
Color
Black
Series
MINI
Features
Backshell, Coupling Nut
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Communication Systems, Industrial, Lighting, Medical
Cable Opening
0.138" ~ 0.268" (3.50mm ~ 6.80mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
110V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass, Phosphor Bronze
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Number of Positions
3
Current Rating (Amps)
5A
Operating Temperature
-45°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
| Attribute | Value |
|---|---|
| Mfr | Chogori Technologies Inc. |
| Color | Black |
| Series | MINI |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial, Lighting, Medical |
| Cable Opening | 0.138" ~ 0.268" (3.50mm ~ 6.80mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | 110V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass, Phosphor Bronze |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Number of Positions | 3 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -45°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
