Step1: Product

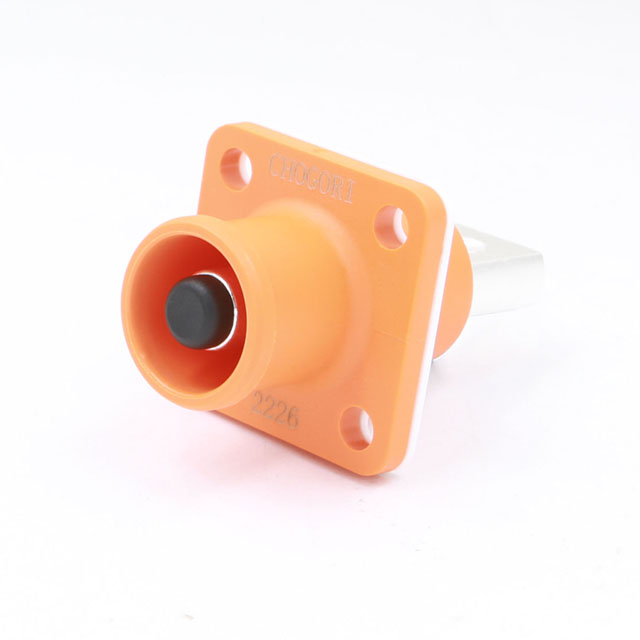

Chogori Technologies Inc. 901-02983-00
Image shown is a representation only
Manufacturer
Manufacturer No
901-02983-00
Packaging
Box
Description
NSC4-08RG-GB04 PANEL MOUNT(ORANG
Detailed Description
1 Position Circular Connector Receptacle, Male Pins Solder Eyelet(s)
DataSheet
Mfr
Chogori Technologies Inc.
Series
NS08
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Eyelet(s)
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Male Pins
Fastening Type
Push-Pull
Shell Material
Polyamide (PA), Nylon
Voltage Rating
1000VDC
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP66 - Dust Tight, Water Resistant
Number of Positions
1
Current Rating (Amps)
200A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Silver
| Attribute | Value |
|---|---|
| Mfr | Chogori Technologies Inc. |
| Series | NS08 |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | 1000VDC |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Number of Positions | 1 |
| Current Rating (Amps) | 200A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Silver |
