Step1: Product

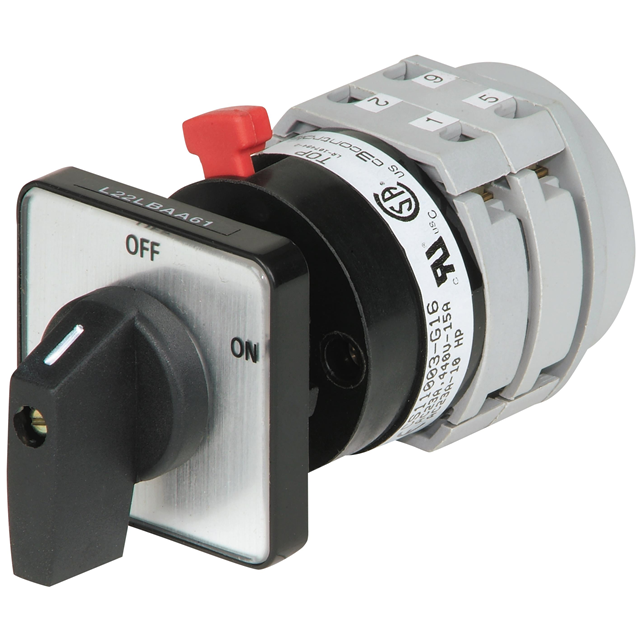

c3controls CS11192-G25-L22LBGA91
Image shown is a representation only
Manufacturer
Manufacturer No
CS11192-G25-L22LBGA91
Packaging
Box
Description
SWITCH SELECT 2POS SPST 20A 600V
Detailed Description
Selector Switch 2 Position SPST-NO 20A (AC) 600 V Panel Mount
DataSheet
Type
Standard
Series
CS
Circuit
SPST-NO
Packaging
Box
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
c3controls
Mounting Type
Panel Mount
Approval Agency
CE, CSA, cURus
Mechanical Life
100,000 Cycles
Switch Function
Off-On
Termination Style
Screw Terminal
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
CS11192
Depth Behind Flange
52.00mm
Number of Positions
2
Voltage Rating - AC
600 V
Current Rating (Amps)
20A (AC)
Operating Temperature
-25°C ~ 55°C
Panel Cutout Dimensions
Circular - 22.50mm Dia
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | CS |
| Circuit | SPST-NO |
| Packaging | Box |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | c3controls |
| Mounting Type | Panel Mount |
| Approval Agency | CE, CSA, cURus |
| Mechanical Life | 100,000 Cycles |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | CS11192 |
| Depth Behind Flange | 52.00mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 600 V |
| Current Rating (Amps) | 20A (AC) |
| Operating Temperature | -25°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
