Step1: Product
c3controls W22S2-HW-10

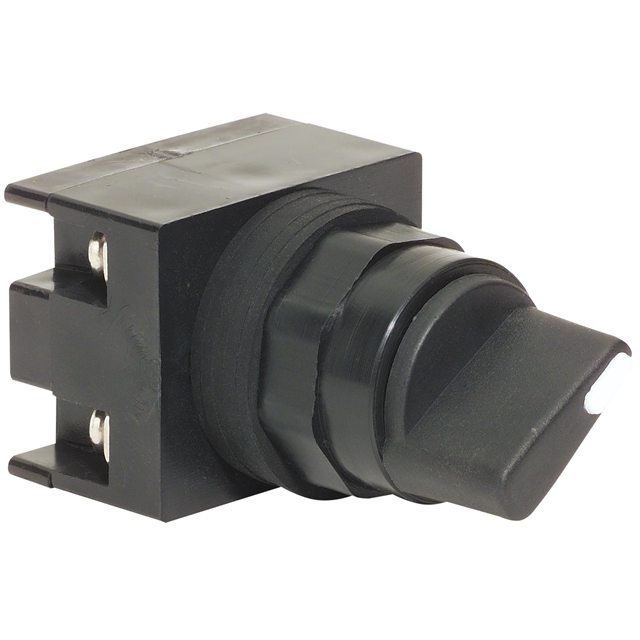

Image shown is a representation only
Manufacturer
Manufacturer No
W22S2-HW-10
Packaging
Bag
Description
SWITCH SELECT 2POS SPST 10A 72V
Detailed Description
Selector Switch 2 Position SPST-NO 10A (AC), 2.5A (DC) 72 V Panel Mount
DataSheet
Type
Standard
Series
22
Circuit
SPST-NO
Packaging
Bag
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
c3controls
Mounting Type
Panel Mount
Approval Agency
CE, cULus
Mechanical Life
500,000 Cycles
Switch Function
Off-On
Termination Style
Screw Terminal
Ingress Protection
IP66 - Dust Tight, Water Resistant
Base Product Number
W22S2
Depth Behind Flange
45.60mm
Number of Positions
2
Voltage Rating - AC
72 V
Voltage Rating - DC
28 V
Current Rating (Amps)
10A (AC), 2.5A (DC)
Operating Temperature
-40°C ~ 55°C
Panel Cutout Dimensions
Circular - 22.50mm Dia
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | 22 |
| Circuit | SPST-NO |
| Packaging | Bag |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | c3controls |
| Mounting Type | Panel Mount |
| Approval Agency | CE, cULus |
| Mechanical Life | 500,000 Cycles |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Base Product Number | W22S2 |
| Depth Behind Flange | 45.60mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 72 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 10A (AC), 2.5A (DC) |
| Operating Temperature | -40°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
