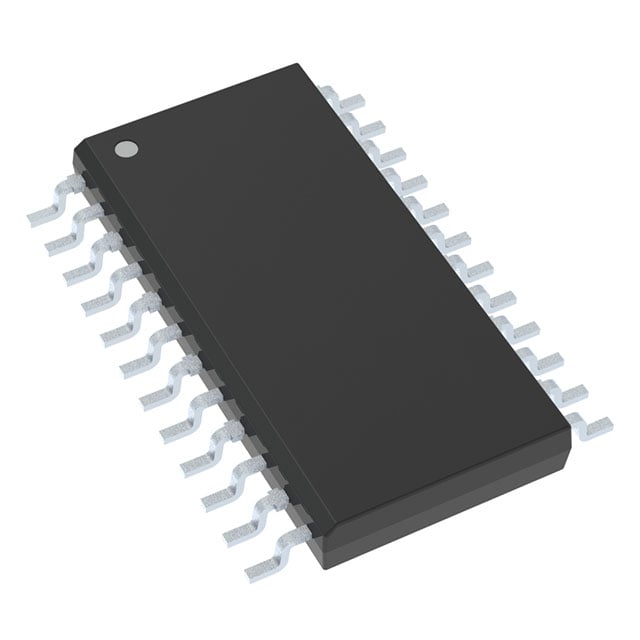

onsemi CS1112YDWFR24
Image shown is a representation only
Manufacturer
Manufacturer No
CS1112YDWFR24
Package
24-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
IC PWR DRIVER N-CHAN 1:1 24SOIC
Detailed Description
Power Switch/Driver 1:1 N-Channel 3A 24-SOIC
DataSheet
Mfr
onsemi
Interface
SPI
Packaging
Tape & Reel (TR)
Output Type
N-Channel
Part Status
Obsolete
Switch Type
General Purpose
Rds On (Typ)
1Ohm
Mounting Type
Surface Mount
Package / Case
24-SOIC (0.295", 7.50mm Width)
Voltage - Load
9V ~ 17V
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Number of Outputs
4
Base Product Number
CS1112
Output Configuration
Low Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 125°C (TJ)
Current - Output (Max)
3A
Supplier Device Package
24-SOIC
Voltage - Supply (Vcc/Vdd)
4.5V ~ 5.5V
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Interface | SPI |
| Packaging | Tape & Reel (TR) |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | General Purpose |
| Rds On (Typ) | 1Ohm |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Voltage - Load | 9V ~ 17V |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
| Number of Outputs | 4 |
| Base Product Number | CS1112 |
| Output Configuration | Low Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Output (Max) | 3A |
| Supplier Device Package | 24-SOIC |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
