Step1: Product

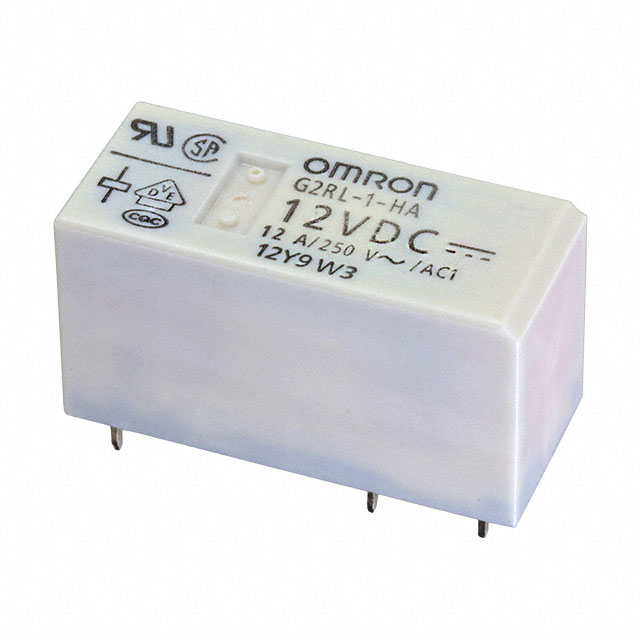

Aratas America LLC G2RL-1-HA DC12
Image shown is a representation only
Manufacturer
Manufacturer No
G2RL-1-HA DC12
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 12A 12V
Detailed Description
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
DataSheet
Mfr
Aratas America LLC
Series
G2RL
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
33.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Operate Time
15 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
CQC, CSA, UR, VDE
Coil Insulation
Class F
Coil Resistance
360 Ohms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
440VAC, 300VDC - Max
Termination Style
PC Pin
Base Product Number
G2RL-1-H
Load - Max Switching
5280VA, 3600W
Must Operate Voltage
8.4 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
12 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G2RL |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 33.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, CSA, UR, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 440VAC, 300VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G2RL-1-H |
| Load - Max Switching | 5280VA, 3600W |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 12 A |
