Step1: Product

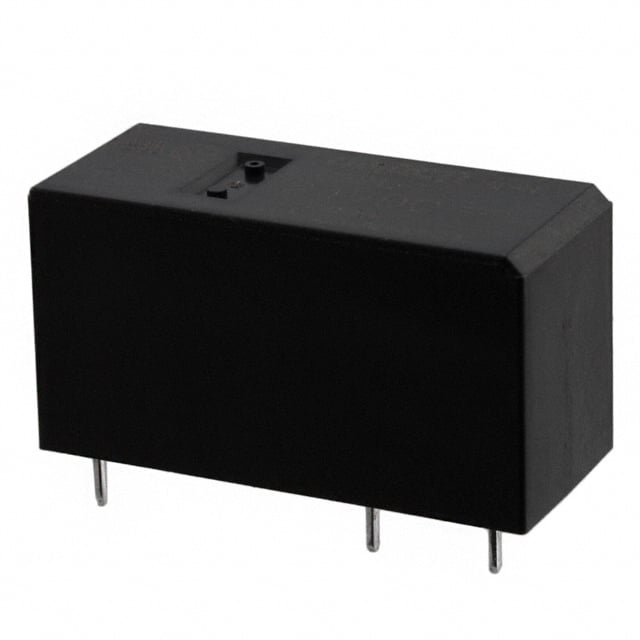

Aratas America LLC G2RL-1-E DC24
Image shown is a representation only
Manufacturer
Manufacturer No
G2RL-1-E DC24
Quantity
1,727
Availability
In Stock
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 16A 24V
Detailed Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
Mfr
Aratas America LLC
Series
G2RL
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
Sealed - Flux Protection
Coil Current
16.7 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Operate Time
15 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
CQC, CSA, UR, VDE
Coil Insulation
Class F
Coil Resistance
1.44 kOhms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
440VAC, 300VDC - Max
Termination Style
PC Pin
Base Product Number
G2RL-1-E
Load - Max Switching
7040VA, 4800W
Must Operate Voltage
16.8 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G2RL |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 16.7 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, CSA, UR, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 1.44 kOhms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 440VAC, 300VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G2RL-1-E |
| Load - Max Switching | 7040VA, 4800W |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 16 A |
