Step1: Product
Aratas America LLC G5NB-1A-E DC12

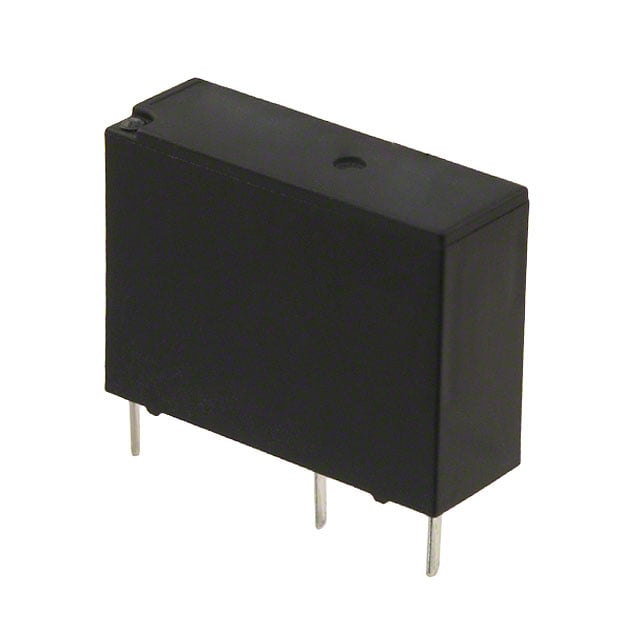

Image shown is a representation only
Manufacturer
Manufacturer No
G5NB-1A-E DC12
Quantity
96,873
Availability
In Stock
Packaging
Tray
Description
RELAY GEN PURPOSE SPST 5A 12V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
Mfr
Aratas America LLC
Series
G5NB
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Seal Rating
Sealed - Flux Protection
Coil Current
16.7 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
CQC, CSA, UR, VDE
Coil Resistance
720 Ohms
Switching Voltage
250VAC, 30VDC - Max
Termination Style
PC Pin
Base Product Number
G5NB-1A
Load - Max Switching
1250VA, 150W
Must Operate Voltage
9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
5 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G5NB |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 16.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, CSA, UR, VDE |
| Coil Resistance | 720 Ohms |
| Switching Voltage | 250VAC, 30VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G5NB-1A |
| Load - Max Switching | 1250VA, 150W |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 5 A |
