Step1: Product

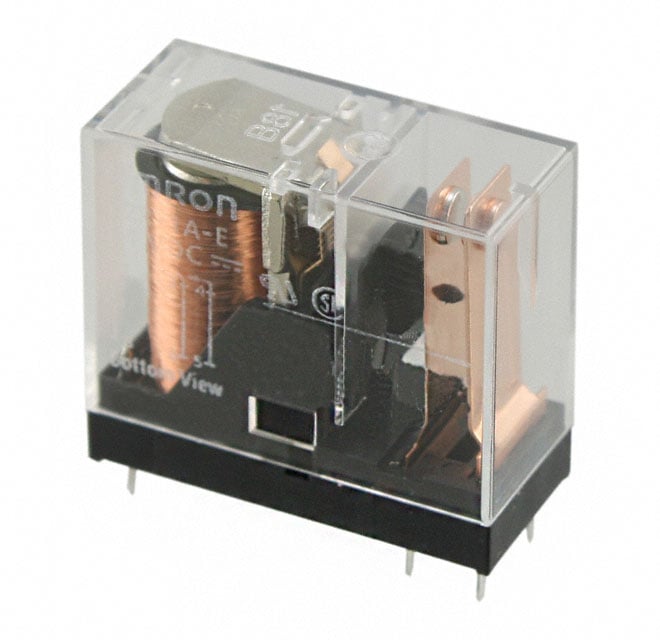

Aratas America LLC G2R-1A-E AC220
Image shown is a representation only
Manufacturer
Manufacturer No
G2R-1A-E AC220
Packaging
Tray
Description
RELAY GEN PURPOSE SPST 16A 220V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 220VAC Coil Through Hole
DataSheet
Mfr
Aratas America LLC
Series
G2R
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Part Status
Obsolete
Seal Rating
Sealed - Flux Protection
Coil Current
4.1 mA
Coil Voltage
220VAC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
CSA, TUV, UR, VDE
Coil Resistance
25 kOhms
Contact Material
Silver Alloy
Switching Voltage
380VAC, 125VDC - Max
Termination Style
PC Pin
Base Product Number
G2R-1A
Load - Max Switching
6080VA, 2000W
Must Operate Voltage
176 VAC
Must Release Voltage
66 VAC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G2R |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 4.1 mA |
| Coil Voltage | 220VAC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | CSA, TUV, UR, VDE |
| Coil Resistance | 25 kOhms |
| Contact Material | Silver Alloy |
| Switching Voltage | 380VAC, 125VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G2R-1A |
| Load - Max Switching | 6080VA, 2000W |
| Must Operate Voltage | 176 VAC |
| Must Release Voltage | 66 VAC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
