Step1: Product

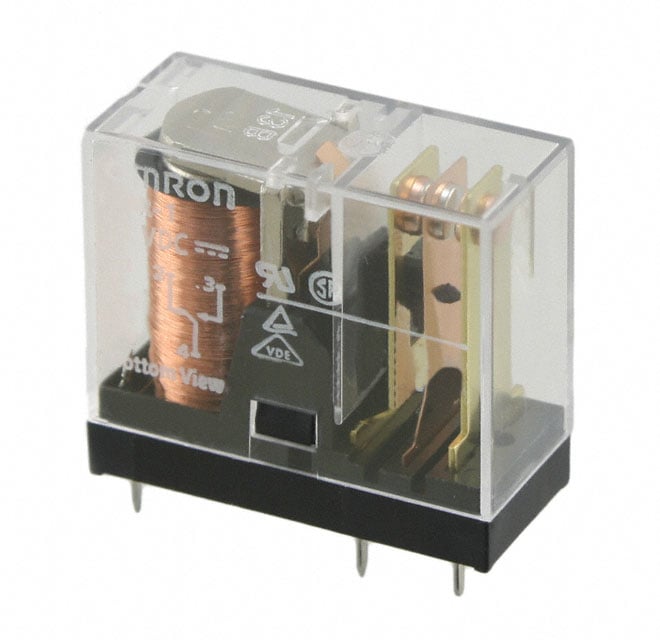

Aratas America LLC G2R-1-E DC24
Image shown is a representation only
Manufacturer
Manufacturer No
G2R-1-E DC24
Quantity
371
Availability
In Stock
Packaging
Tray
Description
RELAY GEN PURPOSE SPDT 16A 24V
Detailed Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
DataSheet
Mfr
Aratas America LLC
Series
G2R
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
21.8 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Operate Time
15 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
CSA, TUV, UR, VDE
Coil Resistance
1.1 kOhms
Contact Material
Silver Alloy
Switching Voltage
380VAC, 125VDC - Max
Termination Style
PC Pin
Base Product Number
G2R-1-E
Load - Max Switching
6080VA, 2000W
Must Operate Voltage
16.8 VDC
Must Release Voltage
3.6 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G2R |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 21.8 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | CSA, TUV, UR, VDE |
| Coil Resistance | 1.1 kOhms |
| Contact Material | Silver Alloy |
| Switching Voltage | 380VAC, 125VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G2R-1-E |
| Load - Max Switching | 6080VA, 2000W |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
