Step1: Product

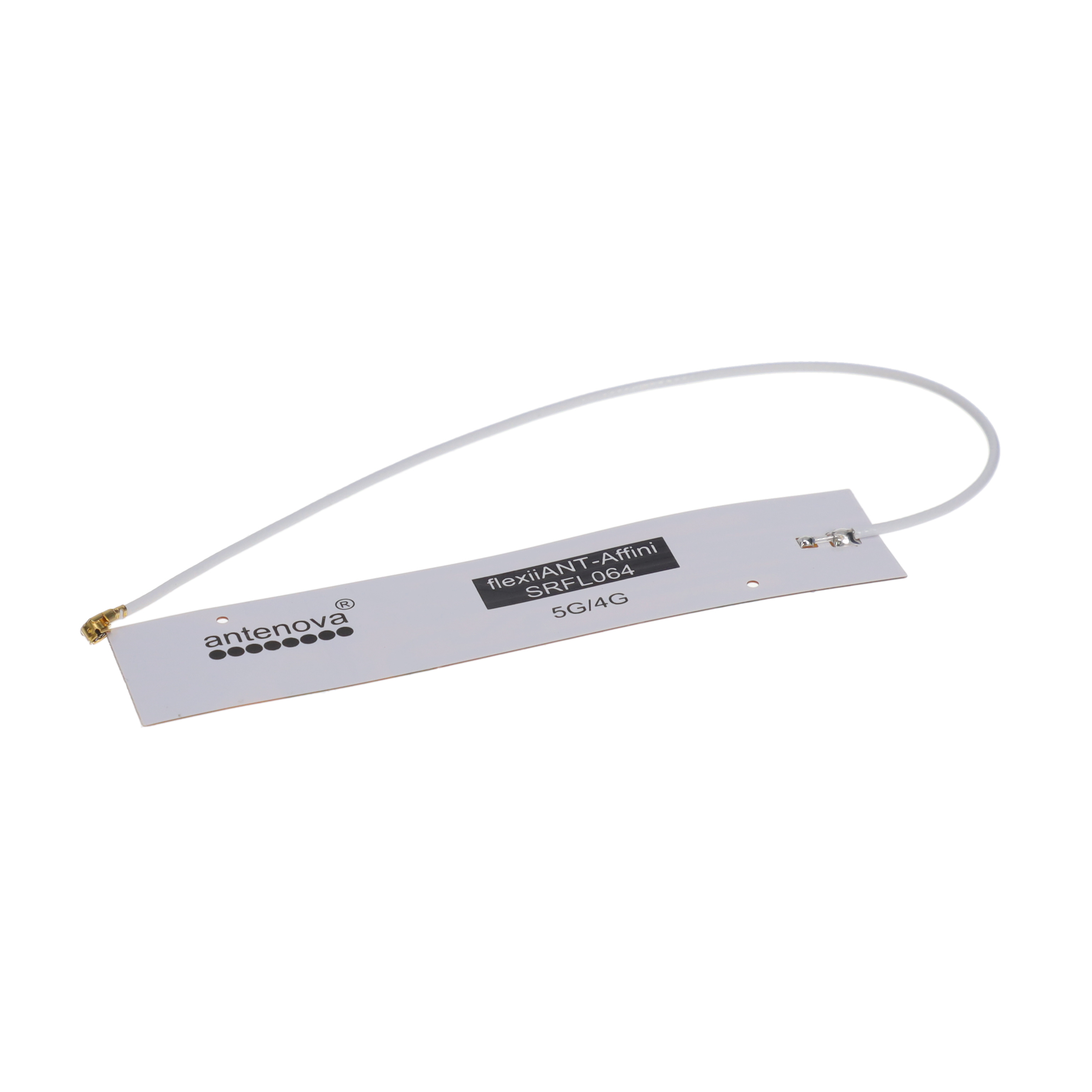

Antenova SRFL064-150
Image shown is a representation only
Manufacturer
Manufacturer No
SRFL064-150
Packaging
Bulk
Description
RF ANT 2.595GHZ FLAT PATCH
Detailed Description
RF ANTENNA 4G, 5G, LTE Flat Patch I-PEX, MHF Adhesive
DataSheet
Gain
1.03dBi, 1.03dBi, 1.71dBi, 3.86dBi, 3.9dBi, 3.88dBi
VSWR
1.6, 1.7, 2.2, 2.7, 3.1
Series
FlexiiANT®
Features
Cable - 150mm
Packaging
Bulk
Part Status
Active
Return Loss
-12dB, -11dB, -8dB, -6dB, -5dB
Termination
I-PEX, MHF
Antenna Type
Flat Patch
Applications
4G, 5G, LTE
Height (Max)
0.006" (0.15mm)
Manufacturer
Antenova
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Number of Bands
6
RF Family/Standard
Cellular
Frequency (Center/Band)
657.5MHz, 761MHz, 892MHz, 1.955GHz, 2.35GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 1.03dBi, 1.03dBi, 1.71dBi, 3.86dBi, 3.9dBi, 3.88dBi |
| VSWR | 1.6, 1.7, 2.2, 2.7, 3.1 |
| Series | FlexiiANT® |
| Features | Cable - 150mm |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -12dB, -11dB, -8dB, -6dB, -5dB |
| Termination | I-PEX, MHF |
| Antenna Type | Flat Patch |
| Applications | 4G, 5G, LTE |
| Height (Max) | 0.006" (0.15mm) |
| Manufacturer | Antenova |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 657.5MHz, 761MHz, 892MHz, 1.955GHz, 2.35GHz, 2.595GHz |
