Step1: Product

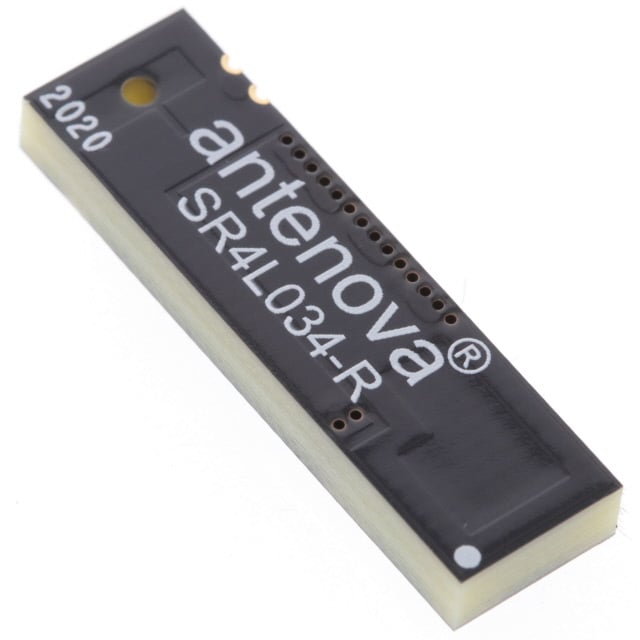

Antenova SR4L034-R
Image shown is a representation only
Manufacturer
Manufacturer No
SR4L034-R
Quantity
28
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF ANT 829MHZ/1.94GHZ PCB TRACE
Detailed Description
RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder Surface Mount
DataSheet
Gain
0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi
VSWR
2.5, 2.8, 3.5, 3.7
Series
Inversa
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Return Loss
-4.9dB, -5.1dB, -6dB, -6.6dB, -7dB
Termination
Solder
Antenna Type
PCB Trace
Applications
3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Height (Max)
0.130" (3.30mm)
Manufacturer
Antenova
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Number of Bands
4
RF Family/Standard
Cellular
Base Product Number
SR4L034
Frequency (Center/Band)
829MHz, 1.94GHz, 2.35GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi |
| VSWR | 2.5, 2.8, 3.5, 3.7 |
| Series | Inversa |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Return Loss | -4.9dB, -5.1dB, -6dB, -6.6dB, -7dB |
| Termination | Solder |
| Antenna Type | PCB Trace |
| Applications | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
| Height (Max) | 0.130" (3.30mm) |
| Manufacturer | Antenova |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| Base Product Number | SR4L034 |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz |
