Step1: Product
Antenova SR4L073

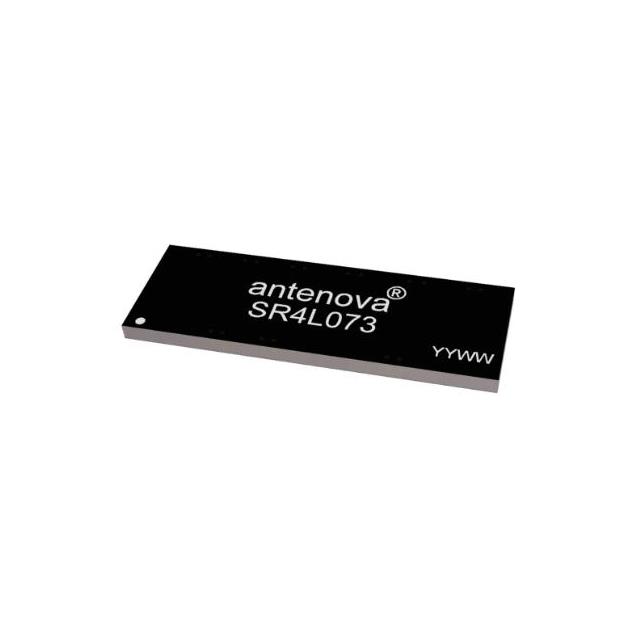

Image shown is a representation only
Manufacturer
Manufacturer No
SR4L073
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PHARAOH LTE ANTENNA
Detailed Description
RF ANTENNA 4G, LTE Chip SMA Female Surface Mount
DataSheet
Gain
-1.4dBi, -0.1dBi, 2.9dBi, 2.6dBi, 2.9dBi
VSWR
1.7, 2.2, 2.8, 3.8
Series
lamiiANT®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Return Loss
-11.3dB, -8.5dB, -6.4dB, -4.6dB
Termination
SMA Female
Antenna Type
Chip
Applications
4G, LTE
Height (Max)
0.130" (3.30mm)
Manufacturer
Antenova
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Number of Bands
5
RF Family/Standard
Cellular
Frequency (Center/Band)
761MHz, 892MHz, 1.96GHz, 2.35GHz, 2.59GHz
| Attribute | Value |
|---|---|
| Gain | -1.4dBi, -0.1dBi, 2.9dBi, 2.6dBi, 2.9dBi |
| VSWR | 1.7, 2.2, 2.8, 3.8 |
| Series | lamiiANT® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Return Loss | -11.3dB, -8.5dB, -6.4dB, -4.6dB |
| Termination | SMA Female |
| Antenna Type | Chip |
| Applications | 4G, LTE |
| Height (Max) | 0.130" (3.30mm) |
| Manufacturer | Antenova |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 5 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.96GHz, 2.35GHz, 2.59GHz |
