Step1: Product

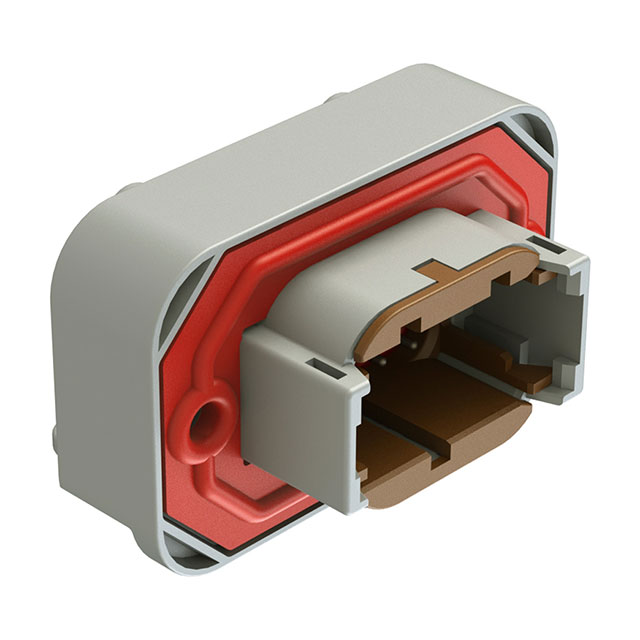

Amphenol Sine Systems Corp ATM13-08PD-BM03
Image shown is a representation only
Manufacturer
Manufacturer No
ATM13-08PD-BM03
Packaging
Tray
Description
CONN HEADER R/A 8POS
Detailed Description
Connector Header Through Hole, Right Angle 8 position
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ATM Series™ BoardLock™
Features
Board Guide, Mating Flange, Mounting Flange
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Gray
Ingress Protection
IP67
Base Product Number
ATM13
Insulation Material
Thermoplastic
Number of Positions
8
Contact Finish - Post
Tin
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ATM Series™ BoardLock™ |
| Features | Board Guide, Mating Flange, Mounting Flange |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Ingress Protection | IP67 |
| Base Product Number | ATM13 |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
