Step1: Product

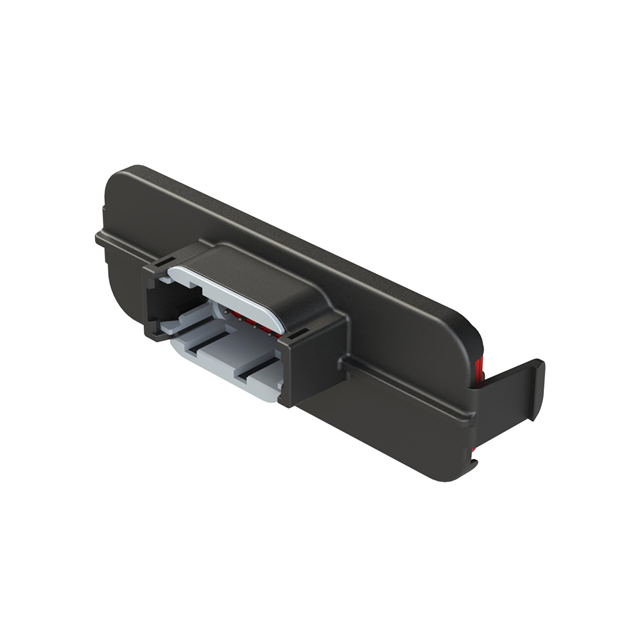

Amphenol Sine Systems Corp ATM13-12PA-R008
Image shown is a representation only
Manufacturer
Manufacturer No
ATM13-12PA-R008
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 12POS 4.2MM
Detailed Description
Connector Header Panel Mount, Snap-In; Through Hole, Right Angle 12 position 0.165" (4.20mm)
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ATM Series™ Armor IPX™
Features
Mounting Flange, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Snap-In; Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.378" (35.00mm)
Ingress Protection
IP69K
Base Product Number
ATM13
Insulation Material
Thermoplastic
Number of Positions
12
Row Spacing - Mating
0.250" (6.35mm)
Contact Finish - Post
Tin
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 155°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ATM Series™ Armor IPX™ |
| Features | Mounting Flange, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Snap-In; Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.378" (35.00mm) |
| Ingress Protection | IP69K |
| Base Product Number | ATM13 |
| Insulation Material | Thermoplastic |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 155°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
