Amphenol Sine Systems Corp AT04-08PB-BM04

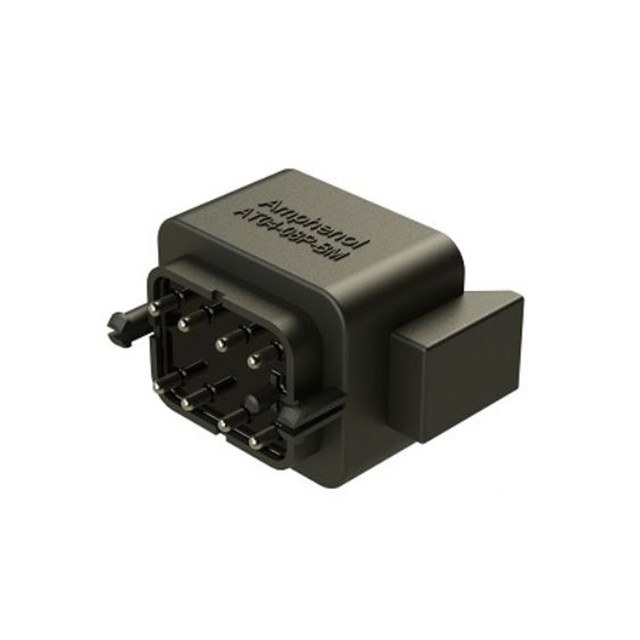

Image shown is a representation only
Manufacturer
Manufacturer No
AT04-08PB-BM04
Quantity
60
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 8POS
Detailed Description
Connector Header Through Hole 8 position
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
AT Series™ BoardLock™
Features
Board Lock, Potting Wall
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.835" (21.21mm)
Ingress Protection
IP67
Base Product Number
AT04-08PB
Insulation Material
Thermoplastic
Number of Positions
8
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Nickel
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | AT Series™ BoardLock™ |
| Features | Board Lock, Potting Wall |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.835" (21.21mm) |
| Ingress Protection | IP67 |
| Base Product Number | AT04-08PB |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Nickel |
| Number of Positions Loaded | All |
