Step1: Product
Amphenol Sine Systems Corp ACPM-TB BULK

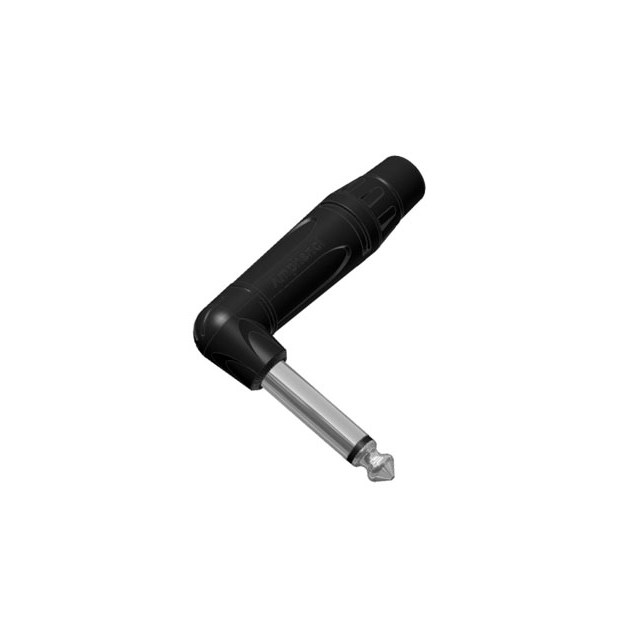

Image shown is a representation only
Manufacturer
Manufacturer No
ACPM-TB BULK
Packaging
Box
Description
1/4" T SERIES PHONE 90' MONO NIC
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
DataSheet
Mfr
Amphenol Sine Systems Corp
Gender
Male
Series
MSeries II 1/4" & 3.5MM
Packaging
Box
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder Eyelet(s)
Signal Lines
Mono
Cable Opening
0.256" ~ 0.315" (6.50mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Phone Plug
Actual Diameter
0.249" (6.32mm)
Contact Material
Brass
Housing Material
Zinc Die Cast
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ACPM
Mating Length/Depth
1.205" (30.61mm)
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Gender | Male |
| Series | MSeries II 1/4" & 3.5MM |
| Packaging | Box |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Signal Lines | Mono |
| Cable Opening | 0.256" ~ 0.315" (6.50mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Phone Plug |
| Actual Diameter | 0.249" (6.32mm) |
| Contact Material | Brass |
| Housing Material | Zinc Die Cast |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ACPM |
| Mating Length/Depth | 1.205" (30.61mm) |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
