Step1: Product

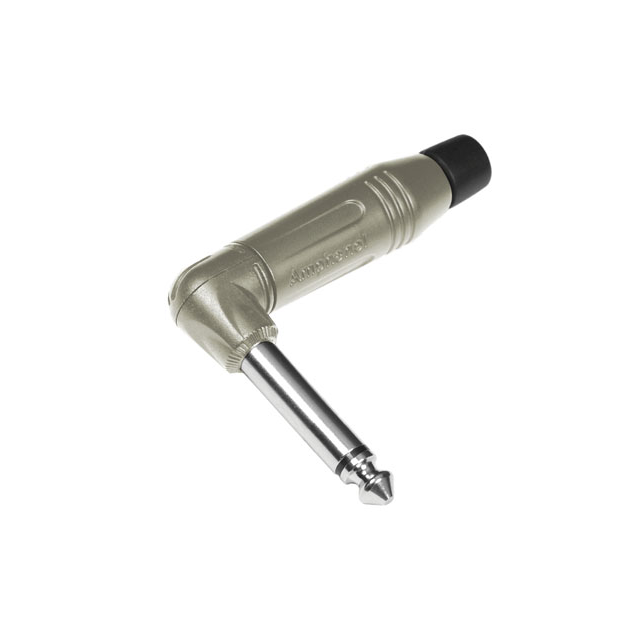

Amphenol Sine Systems Corp ACPM-RN BULK
Image shown is a representation only
Manufacturer
Manufacturer No
ACPM-RN BULK
Packaging
Box
Description
1/4" R SERIES PHONE 90' MONO NIC
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
DataSheet
Mfr
Amphenol Sine Systems Corp
Gender
Male
Series
MSeries
Packaging
Box
Shielding
Unshielded
Body Color
Silver
Part Status
Active
Termination
Solder Eyelet(s)
Signal Lines
Mono
Cable Opening
0.118" ~ 0.256" (3.00mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Phone Plug
Actual Diameter
0.249" (6.32mm)
Contact Material
Brass
Housing Material
Zinc Die Cast
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ACPM
Mating Length/Depth
1.205" (30.61mm)
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Gender | Male |
| Series | MSeries |
| Packaging | Box |
| Shielding | Unshielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Signal Lines | Mono |
| Cable Opening | 0.118" ~ 0.256" (3.00mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Phone Plug |
| Actual Diameter | 0.249" (6.32mm) |
| Contact Material | Brass |
| Housing Material | Zinc Die Cast |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ACPM |
| Mating Length/Depth | 1.205" (30.61mm) |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
