Step1: Product

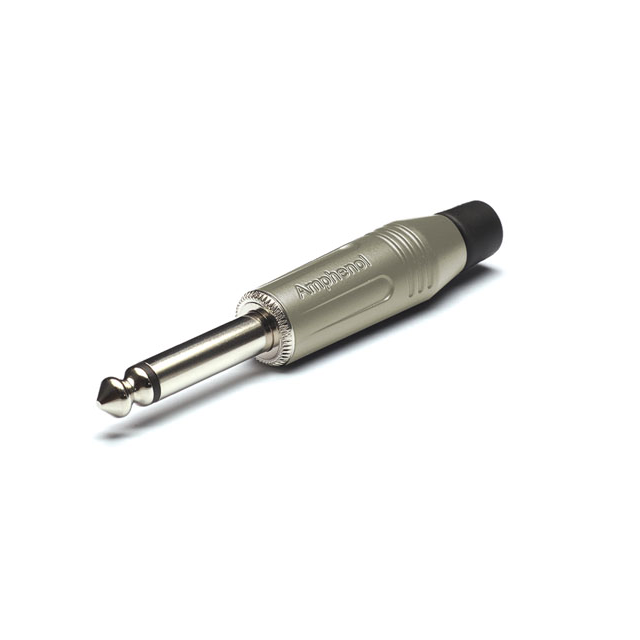

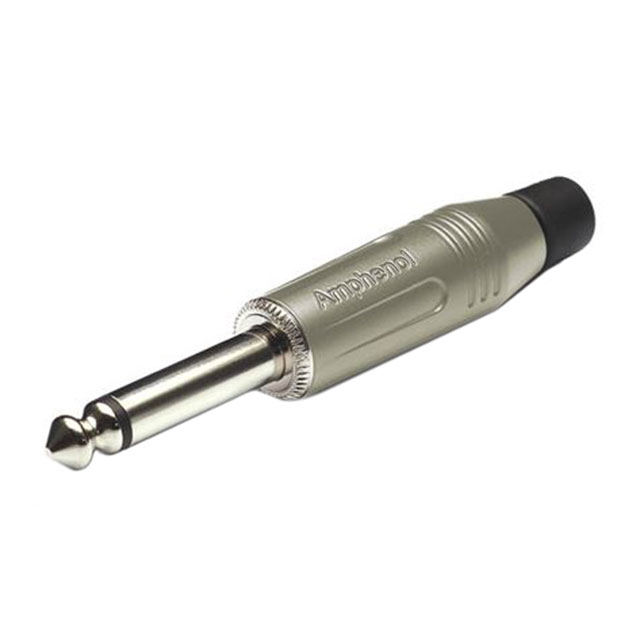

Amphenol Audio ACPM-GN
Image shown is a representation only
Manufacturer
Manufacturer No
ACPM-GN
Quantity
1
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG MONO 1/4"
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
DataSheet
Mfr
Amphenol Audio
Gender
Male
Series
MSeries
Includes
3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver
Part Status
Active
Termination
Solder Eyelet(s)
Signal Lines
Mono
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Actual Diameter
0.249" (6.32mm)
Contact Material
Brass
Housing Material
Zinc Alloy
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ACPM
Mating Length/Depth
1.190" (30.30mm)
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Gender | Male |
| Series | MSeries |
| Includes | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Signal Lines | Mono |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Actual Diameter | 0.249" (6.32mm) |
| Contact Material | Brass |
| Housing Material | Zinc Alloy |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ACPM |
| Mating Length/Depth | 1.190" (30.30mm) |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
