Step1: Product
Amphenol Audio ACJS-MHD985

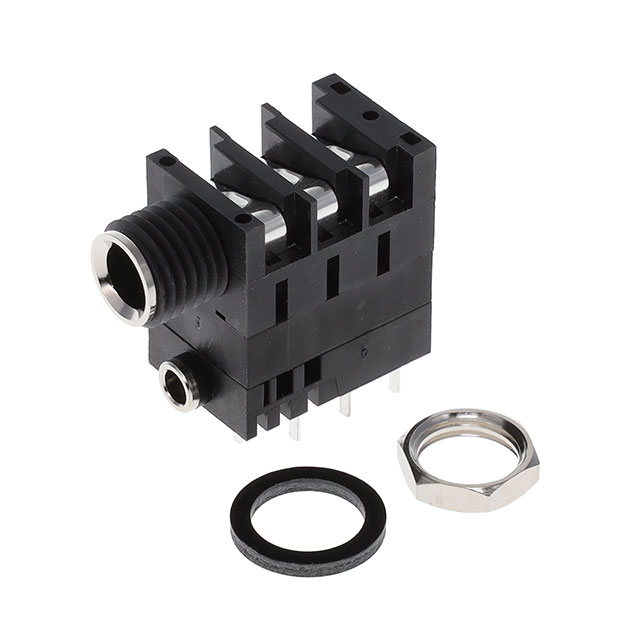

Image shown is a representation only
Manufacturer
Manufacturer No
ACJS-MHD985
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
DUAL 3.5MM/1/4" TRS HORZ PCB
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone, 6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder
DataSheet
Mfr
Amphenol Audio
Gender
Female
Series
XLRSeries™ AC
Features
Mounting Hardware, Thread Lock
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Kinked Pin, Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Phone Jack, Dual
Voltage - Rated
34V
Contact Material
Brass
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Internal Switch(s)
Three Switches
Base Product Number
ACJS
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Tin
Number of Positions/Contacts
3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone, 6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Gender | Female |
| Series | XLRSeries™ AC |
| Features | Mounting Hardware, Thread Lock |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Phone Jack, Dual |
| Voltage - Rated | 34V |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Internal Switch(s) | Three Switches |
| Base Product Number | ACJS |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone, 6.35mm (0.250", 1/4") - Headphone |
