Step1: Product
Amphenol ICC (Commercial Products) L77TWA7W2S

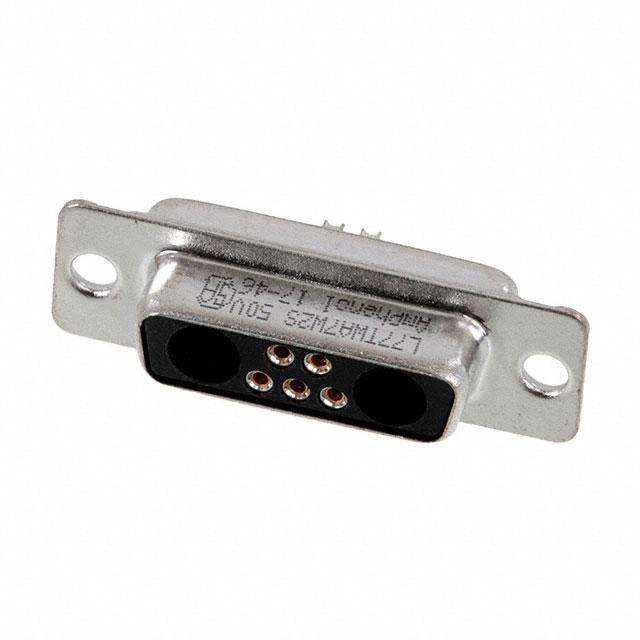

Image shown is a representation only
Manufacturer
Manufacturer No
L77TWA7W2S
Quantity
30
Availability
In Stock
Packaging
Bag
Description
CONN D-SUB RCPT 7POS PNL MNT
Detailed Description
7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
TW
Packaging
Bag
Part Status
Active
Termination
Solder Cup
Contact Form
Machined
Contact Type
Signal and Coax or Power (Not Included)
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
300V
Connector Style
D-Sub, Combo
Contact Material
Bronze
Base Product Number
L77TWA7
Dielectric Material
Thermoplastic
Number of Positions
7 (5 + 2 Coax or Power)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 155°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
16.0µin (0.41µm)
Shell Size, Connector Layout
2 (DA, A) - 7W2
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | TW |
| Packaging | Bag |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal and Coax or Power (Not Included) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Connector Style | D-Sub, Combo |
| Contact Material | Bronze |
| Base Product Number | L77TWA7 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 7 (5 + 2 Coax or Power) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 155°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
