Step1: Product

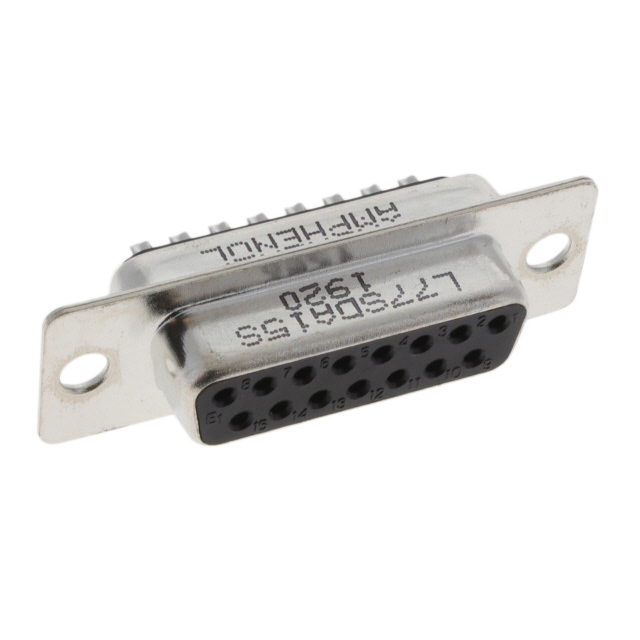

Amphenol ICC (Commercial Products) L77SDA15S
Image shown is a representation only
Manufacturer
Manufacturer No
L77SDA15S
Quantity
35
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB RCPT 15POS SOLDER CUP
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
SD
Packaging
Bulk
Wire Gauge
20 AWG
Part Status
Active
Termination
Solder Cup
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
250V
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
L77SDA15
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
15
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | SD |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | L77SDA15 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 15 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
