Step1: Product

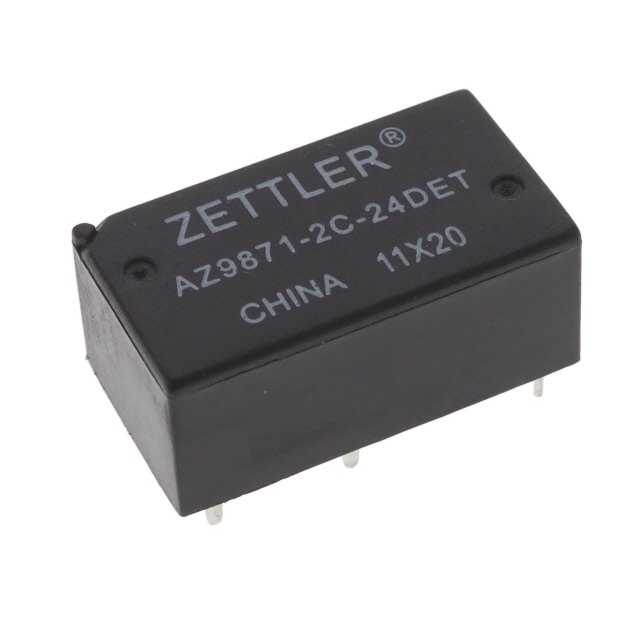

American Zettler AZ9871-2C-24DET
Image shown is a representation only
Manufacturer
Manufacturer No
AZ9871-2C-24DET
Packaging
Tray
Description
RELAY AUTOMOTIVE DPDT 30A 24V
Detailed Description
Automotive Relay DPDT (2 Form C) 24VDC Coil Through Hole
DataSheet
Series
AZ9871
Features
Sealed - Epoxy
Coil Type
Non Latching
Packaging
Tray
Coil Power
570mW
Part Status
Active
Coil Current
23.8 mA
Coil Voltage
24VDC
Contact Form
DPDT (2 Form C)
Manufacturer
American Zettler
Operate Time
3 ms
Release Time
1.5 ms
Mounting Type
Through Hole
Coil Resistance
1.01 kOhms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
24VDC - Max
Termination Style
PC Pin
Must Operate Voltage
13.8 VDC
Must Release Voltage
3 VDC
Operating Temperature
-40°C ~ 105°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Series | AZ9871 |
| Features | Sealed - Epoxy |
| Coil Type | Non Latching |
| Packaging | Tray |
| Coil Power | 570mW |
| Part Status | Active |
| Coil Current | 23.8 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Manufacturer | American Zettler |
| Operate Time | 3 ms |
| Release Time | 1.5 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 1.01 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 24VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 13.8 VDC |
| Must Release Voltage | 3 VDC |
| Operating Temperature | -40°C ~ 105°C |
| Contact Rating (Current) | 30 A |
