Step1: Product
Allied Components International LS03-R24J-RC

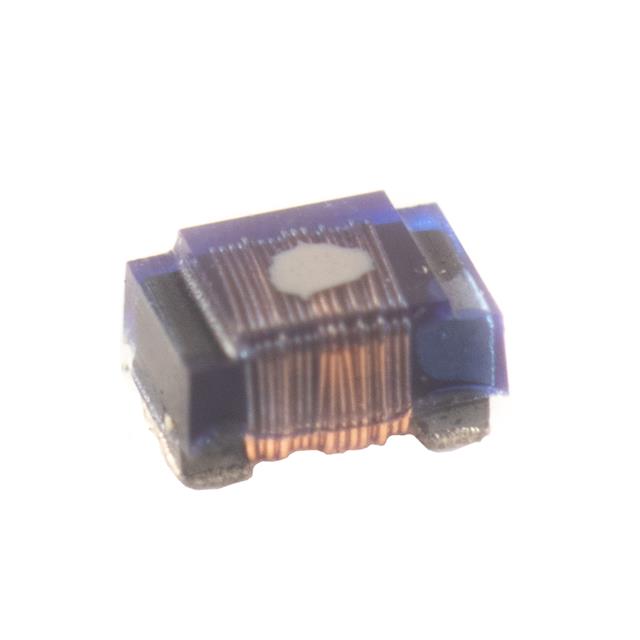

Image shown is a representation only
Manufacturer
Manufacturer No
LS03-R24J-RC
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 240NH 190 MOHM SMD
Detailed Description
240 nH Unshielded Wirewound Inductor 190mOhm Max 0603 (1608 Metric)
Datasheet
Mfr
Allied Components International
Type
Wirewound
Series
LS03
Q @ Freq
17 @ 7.9MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±5%
Inductance
240 nH
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Material - Core
Ferrite
Size / Dimension
0.071" L x 0.049" W (1.80mm x 1.25mm)
DC Resistance (DCR)
190mOhm Max
Height - Seated (Max)
0.040" (1.02mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0603
Frequency - Self Resonant
1.05GHz
Current - Saturation (Isat)
1.3A
Inductance Frequency - Test
7.9 MHz
| Attribute | Value |
|---|---|
| Mfr | Allied Components International |
| Type | Wirewound |
| Series | LS03 |
| Q @ Freq | 17 @ 7.9MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 240 nH |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.25mm) |
| DC Resistance (DCR) | 190mOhm Max |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0603 |
| Frequency - Self Resonant | 1.05GHz |
| Current - Saturation (Isat) | 1.3A |
| Inductance Frequency - Test | 7.9 MHz |
