Step1: Product

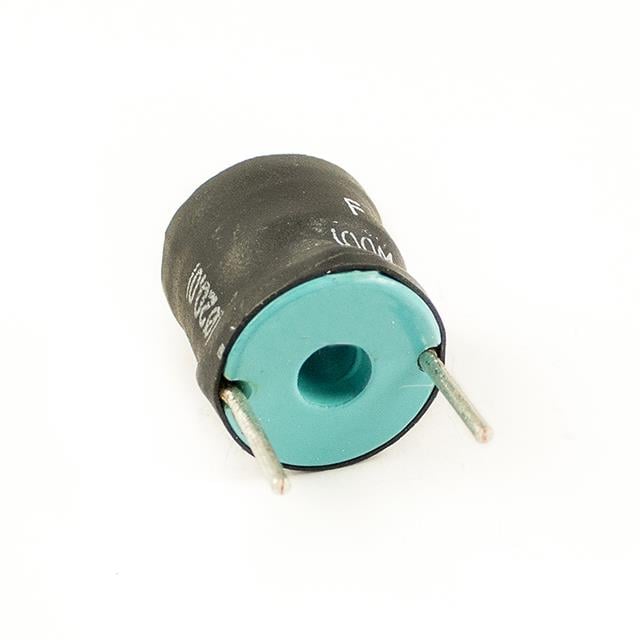

Allied Components International RDC20-102K-RC
Image shown is a representation only
Manufacturer
Manufacturer No
RDC20-102K-RC
Package
Radial, Vertical Cylinder
Packaging
Bulk
Description
FIXED IND 1MH 1A 818 MOHM TH
Detailed Description
1 mH Unshielded Drum Core, Wirewound Inductor 1 A 818mOhm Max Radial, Vertical Cylinder
DataSheet
Mfr
Allied Components International
Type
Drum Core, Wirewound
Series
RDC20
Packaging
Bulk
Shielding
Unshielded
Tolerance
±10%
Inductance
1 mH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Radial, Vertical Cylinder
Size / Dimension
0.825" Dia (20.96mm)
DC Resistance (DCR)
818mOhm Max
Current Rating (Amps)
1 A
Height - Seated (Max)
0.840" (21.34mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
Radial Lead
Current - Saturation (Isat)
3.1A
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Allied Components International |
| Type | Drum Core, Wirewound |
| Series | RDC20 |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 1 mH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.825" Dia (20.96mm) |
| DC Resistance (DCR) | 818mOhm Max |
| Current Rating (Amps) | 1 A |
| Height - Seated (Max) | 0.840" (21.34mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | Radial Lead |
| Current - Saturation (Isat) | 3.1A |
| Inductance Frequency - Test | 1 kHz |
