Step1: Product

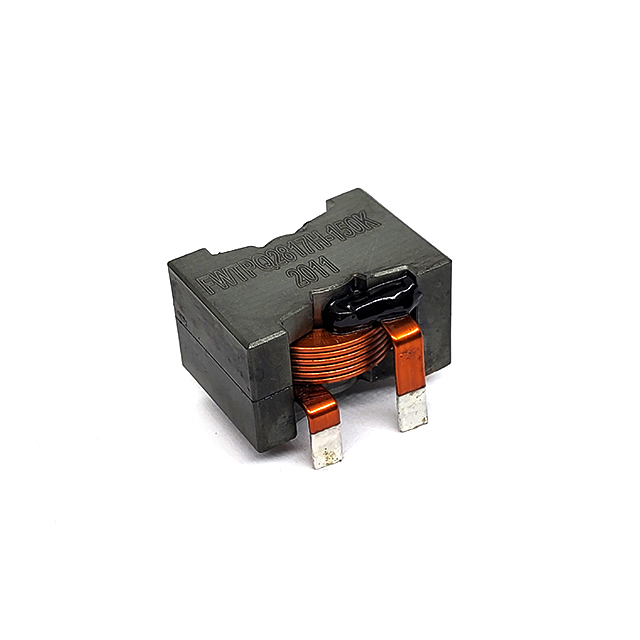

Allied Components International FWPQ2817H-150K
Image shown is a representation only
Manufacturer
Manufacturer No
FWPQ2817H-150K
Package
Nonstandard
Packaging
Tray
Description
FIXED IND 15UH 28A 2.82 MOHM TH
Detailed Description
15 µH Shielded Wirewound Inductor 28 A 2.82mOhm Nonstandard
DataSheet
Mfr
Allied Components International
Type
Wirewound
Packaging
Tray
Shielding
Shielded
Tolerance
±10%
Inductance
15 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Nonstandard
Size / Dimension
1.102" L x 0.760" W (28.00mm x 19.30mm)
DC Resistance (DCR)
2.82mOhm
Current Rating (Amps)
28 A
Height - Seated (Max)
0.906" (23.00mm)
Operating Temperature
-40°C ~ 85°C
Frequency - Self Resonant
16MHz
Current - Saturation (Isat)
21.9A
Inductance Frequency - Test
500 kHz
| Attribute | Value |
|---|---|
| Mfr | Allied Components International |
| Type | Wirewound |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 15 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Size / Dimension | 1.102" L x 0.760" W (28.00mm x 19.30mm) |
| DC Resistance (DCR) | 2.82mOhm |
| Current Rating (Amps) | 28 A |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Self Resonant | 16MHz |
| Current - Saturation (Isat) | 21.9A |
| Inductance Frequency - Test | 500 kHz |
