Ai-Thinker PB-03M

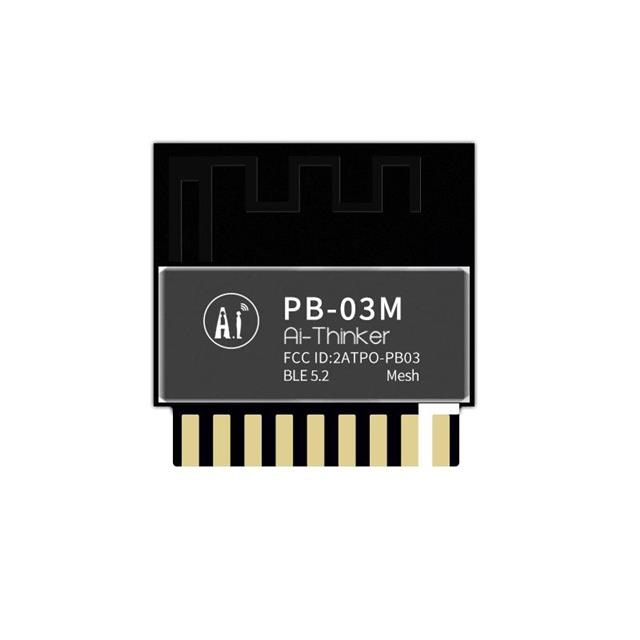

Image shown is a representation only
Manufacturer
Manufacturer No
PB-03M
Package
18-DIP Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MOD BT THTHROUGH HOLE
Detailed Description
Bluetooth Bluetooth v5.2 Transceiver Module 2.4GHz PCB Trace Card Edge
DataSheet
Mfr
Ai-Thinker
Protocol
Bluetooth v5.2
Data Rate
2Mbps
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Memory Size
256kB Flash, 96kB ROM, 64kB SRAM
Part Status
Active
Sensitivity
-102dBm
Antenna Type
PCB Trace
Mounting Type
Card Edge
Package / Case
18-DIP Module
Power - Output
8dBm
Voltage - Supply
2.7V ~ 3.6V
Serial Interfaces
ADC, GPIO, I2C, I2S, PDM, PWM, SPI
RF Family/Standard
Bluetooth
Utilized IC / Part
PHY6252
Current - Receiving
9.4mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
8mA ~ 11.5mA
| Attribute | Value |
|---|---|
| Mfr | Ai-Thinker |
| Protocol | Bluetooth v5.2 |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Memory Size | 256kB Flash, 96kB ROM, 64kB SRAM |
| Part Status | Active |
| Sensitivity | -102dBm |
| Antenna Type | PCB Trace |
| Mounting Type | Card Edge |
| Package / Case | 18-DIP Module |
| Power - Output | 8dBm |
| Voltage - Supply | 2.7V ~ 3.6V |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PDM, PWM, SPI |
| RF Family/Standard | Bluetooth |
| Utilized IC / Part | PHY6252 |
| Current - Receiving | 9.4mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 8mA ~ 11.5mA |
