Step1: Product

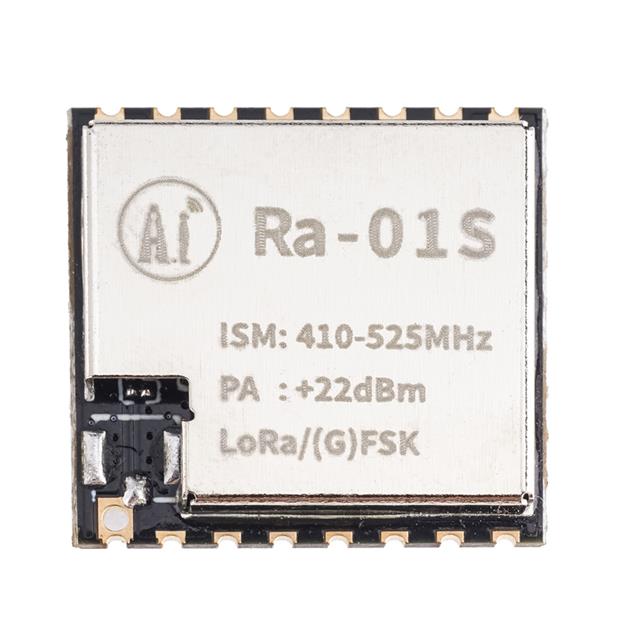

Ai-Thinker RA-01S
Image shown is a representation only
Manufacturer
Manufacturer No
RA-01S
Package
16-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MOD ISM<1GHZIPEX SMD
Detailed Description
General ISM < 1GHz LoRa™ Transceiver Module 410MHz ~ 525MHz Antenna Not Included, I-PEX Surface Mount
Datasheet
Mfr
Ai-Thinker
Protocol
LoRa™
Data Rate
300kbps
Frequency
410MHz ~ 525MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
FSK, GFSK, GMSK, MSK, OOK
Sensitivity
-140dBm
Antenna Type
Antenna Not Included, I-PEX
Mounting Type
Surface Mount
Package / Case
16-SMD Module
Power - Output
22dBm
Voltage - Supply
2.7V ~ 3.6V
Serial Interfaces
SPI
RF Family/Standard
General ISM < 1GHz
Current - Receiving
4.5mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | Ai-Thinker |
| Protocol | LoRa™ |
| Data Rate | 300kbps |
| Frequency | 410MHz ~ 525MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| Sensitivity | -140dBm |
| Antenna Type | Antenna Not Included, I-PEX |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module |
| Power - Output | 22dBm |
| Voltage - Supply | 2.7V ~ 3.6V |
| Serial Interfaces | SPI |
| RF Family/Standard | General ISM < 1GHz |
| Current - Receiving | 4.5mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
