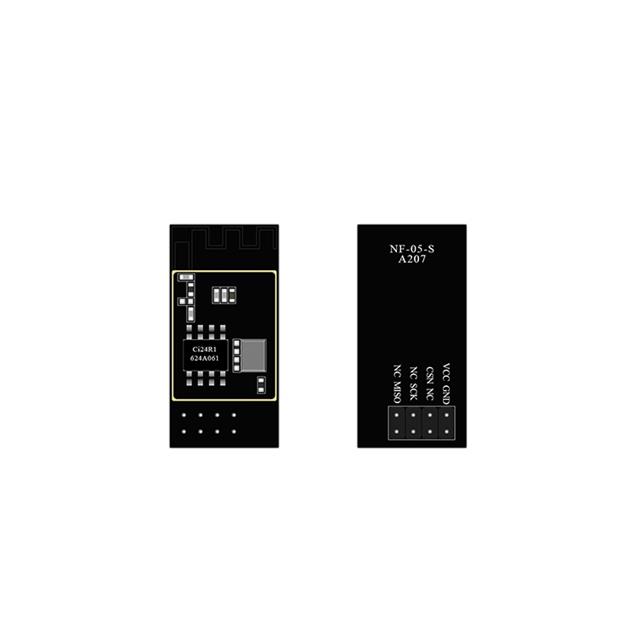

Ai-Thinker NF-05-S
Image shown is a representation only
Manufacturer
Manufacturer No
NF-05-S
Package
8-DIP Module
Packaging
Tray
Description
RF TXRX MOD ISM>1GHZ PCB THTH
Detailed Description
General ISM > 1GHz Transceiver Module 2.4GHz ~ 2.525GHz PCB Trace Through Hole
DataSheet
Mfr
Ai-Thinker
Data Rate
2Mbps
Frequency
2.4GHz ~ 2.525GHz
Packaging
Tray
Modulation
FSK, GFSK
Part Status
Active
Sensitivity
-91dBm
Antenna Type
PCB Trace
Mounting Type
Through Hole
Package / Case
8-DIP Module
Power - Output
8dBm
Voltage - Supply
2.1V ~ 3.6V
Serial Interfaces
SPI
RF Family/Standard
General ISM > 1GHz
Current - Receiving
16mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
36.6mA
| Attribute | Value |
|---|---|
| Mfr | Ai-Thinker |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz ~ 2.525GHz |
| Packaging | Tray |
| Modulation | FSK, GFSK |
| Part Status | Active |
| Sensitivity | -91dBm |
| Antenna Type | PCB Trace |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Power - Output | 8dBm |
| Voltage - Supply | 2.1V ~ 3.6V |
| Serial Interfaces | SPI |
| RF Family/Standard | General ISM > 1GHz |
| Current - Receiving | 16mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 36.6mA |
