Step1: Product

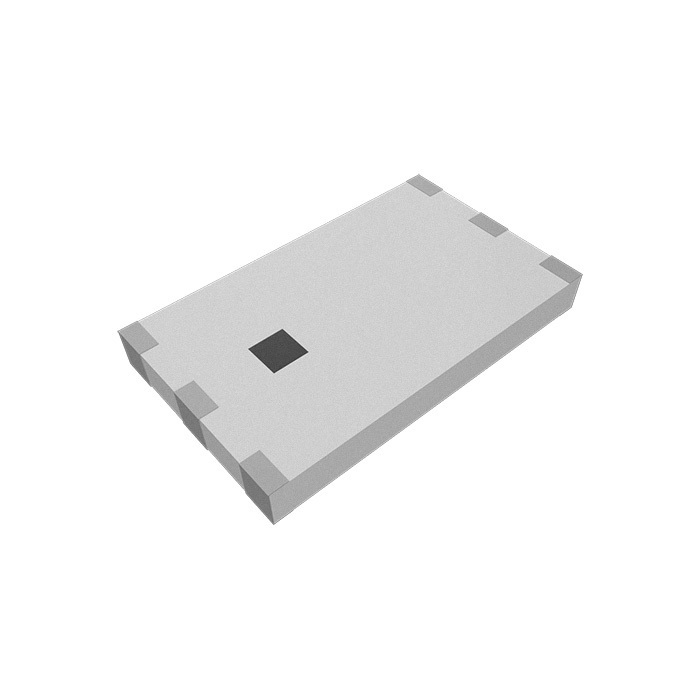

Abracon LLC ACS1006U
Image shown is a representation only
Manufacturer
Manufacturer No
ACS1006U
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ANTENNA UWB MULTI-LAYER CHIP
Detailed Description
RF ANTENNA UWB Chip Surface Mount
Datasheet
Gain
2.2dBi
VSWR
2
Series
UWB
Packaging
Tape & Reel (TR); Cut Tape (CT)
Antenna Type
Chip
Applications
UWB
Height (Max)
0.047" (1.20mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
3.1GHz ~ 10.3GHz
Number of Bands
1
RF Family/Standard
Cellular
Frequency (Center/Band)
6.7GHz
| Attribute | Value |
|---|---|
| Gain | 2.2dBi |
| VSWR | 2 |
| Series | UWB |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Antenna Type | Chip |
| Applications | UWB |
| Height (Max) | 0.047" (1.20mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 3.1GHz ~ 10.3GHz |
| Number of Bands | 1 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 6.7GHz |
