Step1: Product

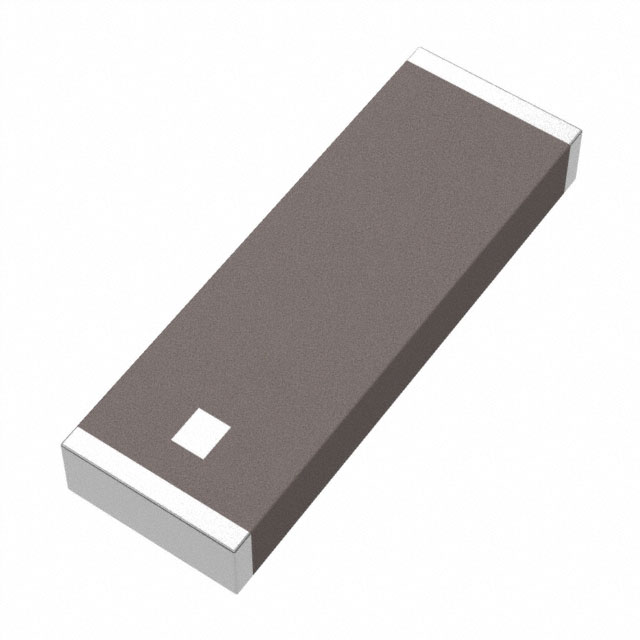

Abracon LLC ACAG1204-433-T
Image shown is a representation only
Manufacturer
Manufacturer No
ACAG1204-433-T
Quantity
1143
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF ANT 433MHZ CHIP SOLDER SMD
Detailed Description
RF ANTENNA ISM, LoRa, Sigfox, Wi-Fi Chip Solder Surface Mount
DataSheet
Gain
-1.72dBi
VSWR
2
Series
ACAG
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Return Loss
-6.5dB
Termination
Solder
Antenna Type
Chip
Applications
ISM, LoRa, Sigfox, Wi-Fi
Height (Max)
0.063" (1.60mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Frequency Group
UHF (300MHz ~ 1GHz)
Frequency Range
428MHz ~ 438MHz
Number of Bands
1
RF Family/Standard
General ISM, WiFi
Frequency (Center/Band)
433MHz
| Attribute | Value |
|---|---|
| Gain | -1.72dBi |
| VSWR | 2 |
| Series | ACAG |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Return Loss | -6.5dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | ISM, LoRa, Sigfox, Wi-Fi |
| Height (Max) | 0.063" (1.60mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency Range | 428MHz ~ 438MHz |
| Number of Bands | 1 |
| RF Family/Standard | General ISM, WiFi |
| Frequency (Center/Band) | 433MHz |
