Step1: Product

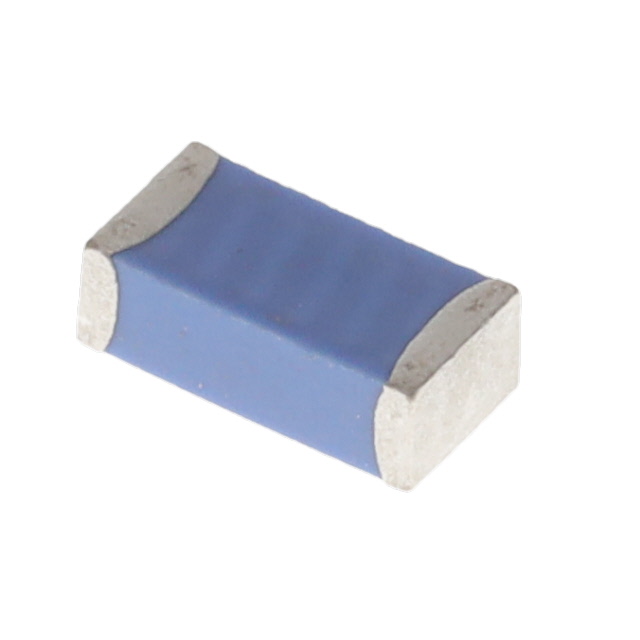

Abracon LLC ACR0301U
Image shown is a representation only
Manufacturer
Manufacturer No
ACR0301U
Quantity
733
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
UWB ANT 6.24GHZ- 8.5GHZ SMD CHIP
Detailed Description
RF ANTENNA UWB Chip Solder Surface Mount
DataSheet
Gain
4.5dBi
VSWR
2
Series
ACR
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
5 W
Termination
Solder
Antenna Type
Chip
Applications
UWB
Height (Max)
0.043" (1.10mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Frequency Group
SHF (f > 4GHz)
Frequency Range
6.24GHz ~ 8.5GHz
Number of Bands
1
Frequency (Center/Band)
7.37GHz
| Attribute | Value |
|---|---|
| Gain | 4.5dBi |
| VSWR | 2 |
| Series | ACR |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | UWB |
| Height (Max) | 0.043" (1.10mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Frequency Group | SHF (f > 4GHz) |
| Frequency Range | 6.24GHz ~ 8.5GHz |
| Number of Bands | 1 |
| Frequency (Center/Band) | 7.37GHz |
