Step1: Product
Abracon LLC ACMP-Q7040-132-T

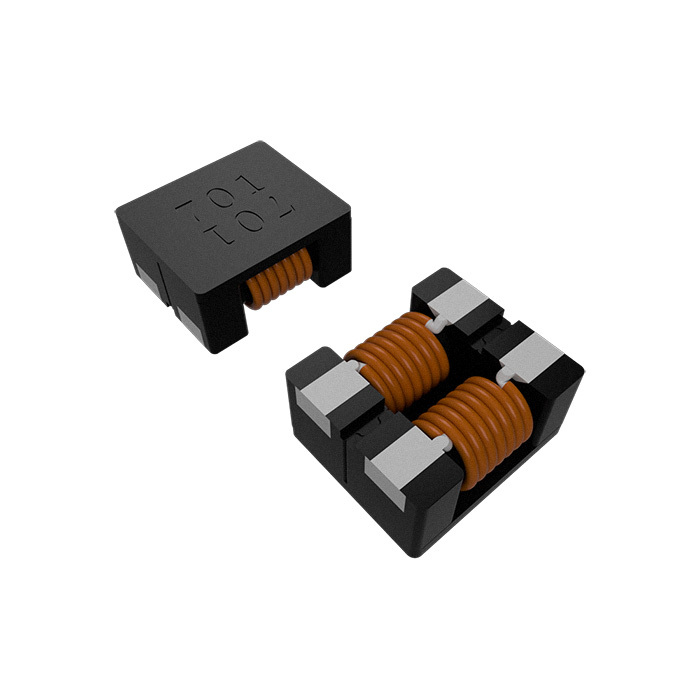

Image shown is a representation only
Manufacturer
Manufacturer No
ACMP-Q7040-132-T
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR)
Description
CMC 3A 2LN 1.3 KOHM SMD AEC-Q200
Detailed Description
2 Line Common Mode Choke Surface Mount 1.3 kOhms @ 100 MHz 3A DCR 20mOhm
DataSheet
Series
ACMP-Q7040
Ratings
AEC-Q200
Packaging
Tape & Reel (TR)
Filter Type
Power Line
Part Status
Active
Height (Max)
0.150" (3.80mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.276" L x 0.236" W (7.00mm x 6.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
3A
Impedance @ Frequency
1.3 kOhms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
20mOhm
| Attribute | Value |
|---|---|
| Series | ACMP-Q7040 |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.150" (3.80mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 3A |
| Impedance @ Frequency | 1.3 kOhms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 20mOhm |
