Step1: Product

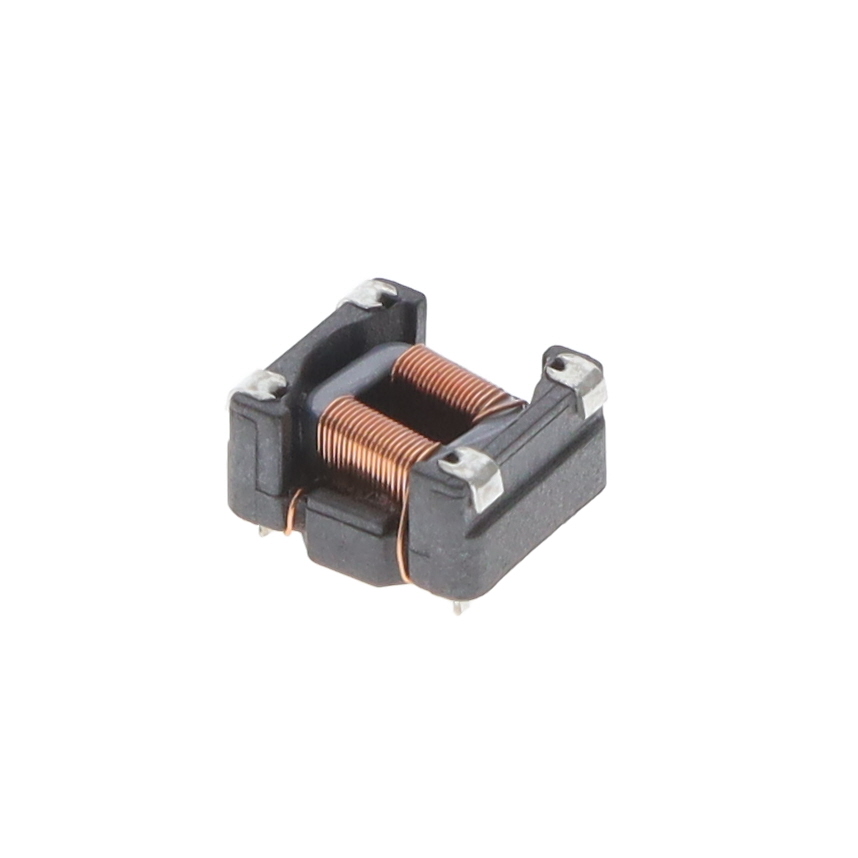

Abracon LLC ACMS-1065-102-T
Image shown is a representation only
Manufacturer
Manufacturer No
ACMS-1065-102-T
Quantity
20
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 1MH 950MA 2LN SMD
Detailed Description
1 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 950mA DCR 180mOhm
DataSheet
Series
ACMS-1065
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.256" (6.50mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.394" L x 0.343" W (10.00mm x 8.70mm)
Voltage Rating - DC
80V
Current Rating (Max)
950mA
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
1 mH @ 100 kHz
DC Resistance (DCR) (Max)
180mOhm
| Attribute | Value |
|---|---|
| Series | ACMS-1065 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.256" (6.50mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.394" L x 0.343" W (10.00mm x 8.70mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 950mA |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 1 mH @ 100 kHz |
| DC Resistance (DCR) (Max) | 180mOhm |
