Step1: Product

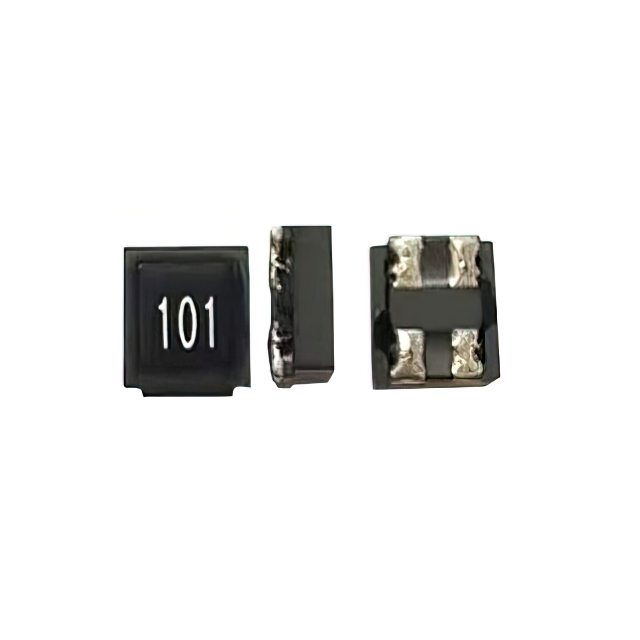

Abracon LLC ACMP-5025-101-T
Image shown is a representation only
Manufacturer
Manufacturer No
ACMP-5025-101-T
Quantity
60
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 6.5A 2LN 100 OHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 100 Ohms @ 100 MHz 6.5A DCR 9mOhm
DataSheet
Series
ACMP-5025
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Power Line
Part Status
Active
Height (Max)
0.098" (2.50mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.197" L x 0.189" W (5.00mm x 4.80mm)
Voltage Rating - DC
50V
Current Rating (Max)
6.5A
Impedance @ Frequency
100 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
9mOhm
| Attribute | Value |
|---|---|
| Series | ACMP-5025 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.098" (2.50mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 6.5A |
| Impedance @ Frequency | 100 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 9mOhm |
