Step1: Product

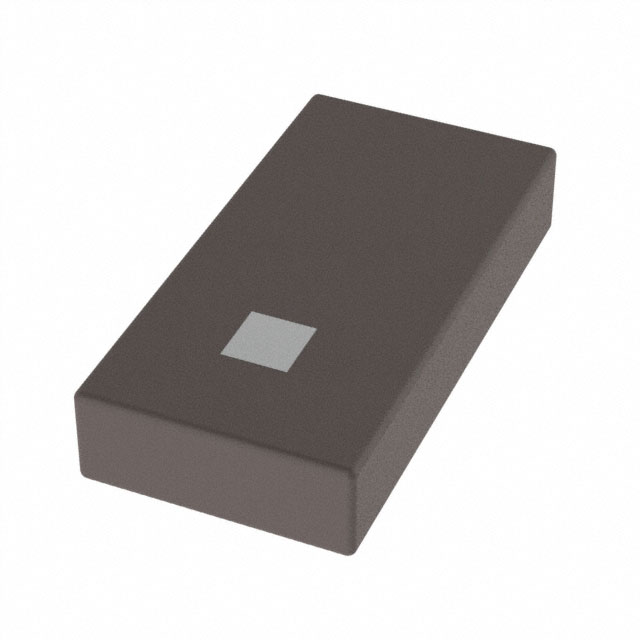

Abracon LLC ACAG0301-24505500-T
Image shown is a representation only
Manufacturer
Manufacturer No
ACAG0301-24505500-T
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Detailed Description
RF ANTENNA Bluetooth, ISM, Wi-Fi Chip Solder Surface Mount
Datasheet
Gain
2.23dBi, 4.05dBi
Series
ACAG
Packaging
Tape & Reel (TR); Cut Tape (CT)
Return Loss
-7dB, -7dB
Termination
Solder
Antenna Type
Chip
Applications
Bluetooth, ISM, Wi-Fi
Height (Max)
0.047" (1.20mm)
Manufacturer
Abracon LLC
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Number of Bands
2
RF Family/Standard
Bluetooth, General ISM, WiFi
Frequency (Center/Band)
2.4GHz, 5.5GHz
| Attribute | Value |
|---|---|
| Gain | 2.23dBi, 4.05dBi |
| Series | ACAG |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Return Loss | -7dB, -7dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Bluetooth, ISM, Wi-Fi |
| Height (Max) | 0.047" (1.20mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Number of Bands | 2 |
| RF Family/Standard | Bluetooth, General ISM, WiFi |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz |
