Step1: Product

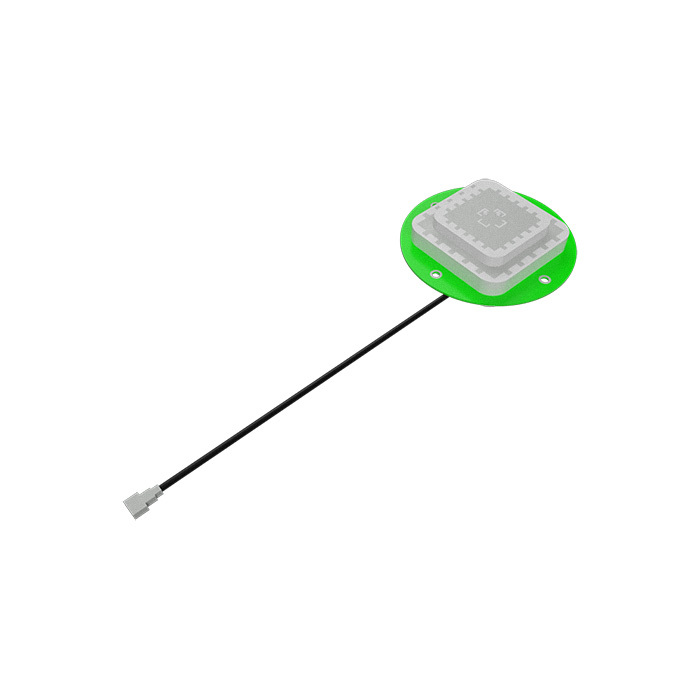

Abracon LLC AANI-AP-0035
Image shown is a representation only
Manufacturer
Manufacturer No
AANI-AP-0035
Packaging
Bulk
Description
RF ANT ACTIVE PATCH GNSS L1/L2
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch MMCX Male Through Hole
Datasheet
Gain
5dBic, 4.8dBic
VSWR
2
Series
AANI-AP
Features
Cable - 120mm, LNA
Packaging
Bulk
Termination
MMCX Male
Antenna Type
Ceramic Patch
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.657" (16.70mm)
Manufacturer
Abracon LLC
Mounting Type
Through Hole
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz
Number of Bands
2
RF Family/Standard
Navigation
Base Product Number
AANI-AP
Frequency (Center/Band)
1.227GHz, 1.575GHz
| Attribute | Value |
|---|---|
| Gain | 5dBic, 4.8dBic |
| VSWR | 2 |
| Series | AANI-AP |
| Features | Cable - 120mm, LNA |
| Packaging | Bulk |
| Termination | MMCX Male |
| Antenna Type | Ceramic Patch |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.657" (16.70mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Through Hole |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Base Product Number | AANI-AP |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz |
