Step1: Product
ABC Taiwan Electronics Corp. SF0905250YLB

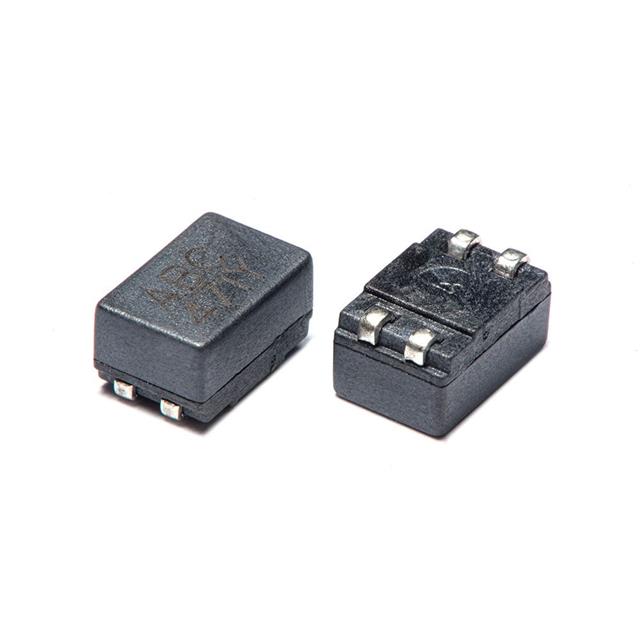

Image shown is a representation only
Manufacturer
Manufacturer No
SF0905250YLB
Package
4-SMD, J-Lead
Packaging
Tape & Reel (TR)
Description
CMC 25UH 1A 2LN 600 OHM SMD
Detailed Description
25 µH @ 1 kHz 2 Line Common Mode Choke Surface Mount 600 Ohms @ 150 MHz 1A DCR 160mOhm
DataSheet
Packaging
Tape & Reel (TR)
Filter Type
Power Line
Part Status
Active
Height (Max)
0.209" (5.30mm)
Manufacturer
ABC Taiwan Electronics Corp.
Mounting Type
Surface Mount
Package / Case
4-SMD, J-Lead
Number of Lines
2
Size / Dimension
0.362" L x 0.236" W (9.20mm x 6.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
1A
Impedance @ Frequency
600 Ohms @ 150 MHz
Operating Temperature
-40°C ~ 105°C
Inductance @ Frequency
25 µH @ 1 kHz
DC Resistance (DCR) (Max)
160mOhm
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR) |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.209" (5.30mm) |
| Manufacturer | ABC Taiwan Electronics Corp. |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Number of Lines | 2 |
| Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 1A |
| Impedance @ Frequency | 600 Ohms @ 150 MHz |
| Operating Temperature | -40°C ~ 105°C |
| Inductance @ Frequency | 25 µH @ 1 kHz |
| DC Resistance (DCR) (Max) | 160mOhm |
