ABC Taiwan Electronics Corp. AQF9045701YSB

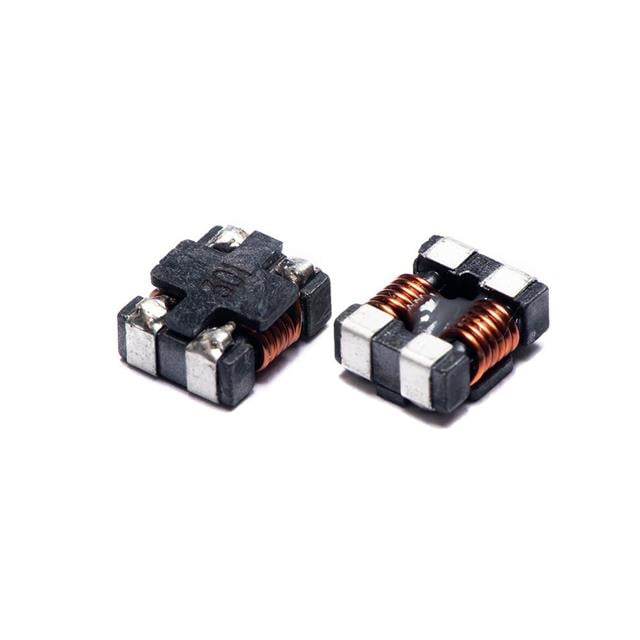

Image shown is a representation only
Manufacturer
Manufacturer No
AQF9045701YSB
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR)
Description
CMC 7.5UH 5A 2LN 700 OHM SMD
Detailed Description
7.5 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100 MHz 5A DCR 10mOhm
DataSheet
Grade
Automotive
Ratings
AEC-Q200
Features
Industrial
Packaging
Tape & Reel (TR)
Filter Type
Power Line
Part Status
Active
Height (Max)
0.177" (4.50mm)
Manufacturer
ABC Taiwan Electronics Corp.
Mounting Type
Surface Mount
Qualification
AEC-Q200
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.354" L x 0.276" W (9.00mm x 7.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
5A
Impedance @ Frequency
700 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
7.5 µH @ 100 kHz
DC Resistance (DCR) (Max)
10mOhm
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Ratings | AEC-Q200 |
| Features | Industrial |
| Packaging | Tape & Reel (TR) |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.177" (4.50mm) |
| Manufacturer | ABC Taiwan Electronics Corp. |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 5A |
| Impedance @ Frequency | 700 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 7.5 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 10mOhm |
