Step1: Product
ABC Taiwan Electronics Corp. SF0502501YLB

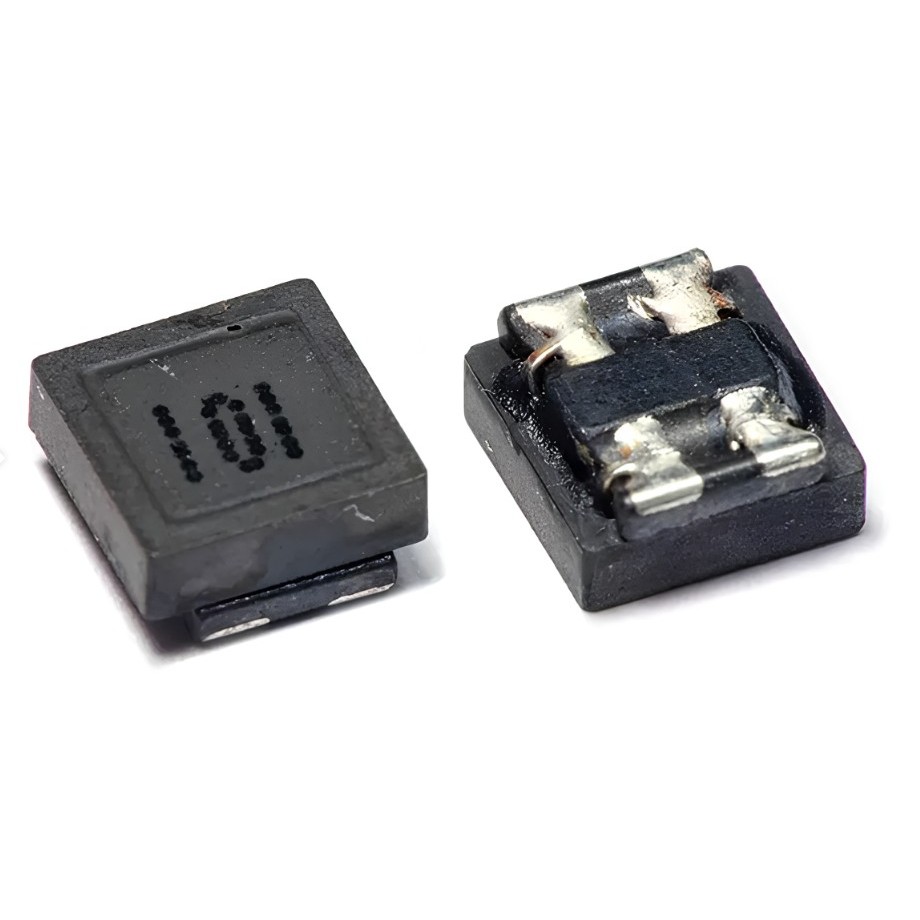

Image shown is a representation only
Manufacturer
Manufacturer No
SF0502501YLB
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR)
Description
CMC 1.10UH 4A 2LN 500OHM SMD
Detailed Description
1.1 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500 Ohms @ 100 MHz 4A DCR 30mOhm
DataSheet
Series
SF0502-L
Packaging
Tape & Reel (TR)
Part Status
Active
Height (Max)
0.098" (2.50mm)
Manufacturer
ABC Taiwan Electronics Corp.
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Voltage Rating - DC
50V
Current Rating (Max)
4A
Impedance @ Frequency
500 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
1.1 µH @ 100 kHz
DC Resistance (DCR) (Max)
30mOhm
| Attribute | Value |
|---|---|
| Series | SF0502-L |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Height (Max) | 0.098" (2.50mm) |
| Manufacturer | ABC Taiwan Electronics Corp. |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 4A |
| Impedance @ Frequency | 500 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 1.1 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 30mOhm |
