Step1: Product
3M 228-1290-09-0602J

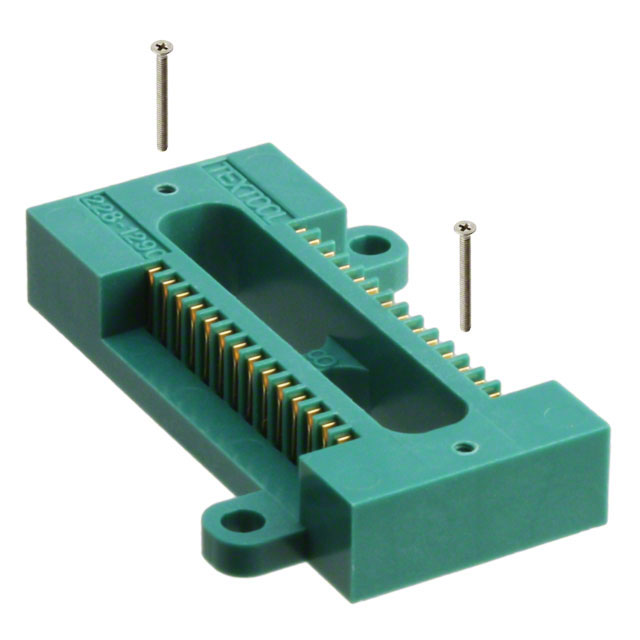

Image shown is a representation only
Manufacturer
Manufacturer No
228-1290-09-0602J
Packaging
Box
Description
RECEPTACLE DIP SOCKET 28POS .4"
Detailed Description
IC Socket Adapter DIP, 0.4" (10.16mm) Row Spacing To DIP, 0.4" (10.16mm) Row Spacing Through Hole
Datasheet
Series
Textool™
Packaging
Box
Termination
Solder
Manufacturer
3M
Pitch - Post
0.070" (1.78mm)
Mounting Type
Through Hole
Number of Pins
28
Pitch - Mating
0.070" (1.78mm)
Housing Material
Polysulfone (PSU), Glass Filled
Base Product Number
228
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.130" (3.30mm)
Convert To (Adapter End)
DIP, 0.4" (10.16mm) Row Spacing
Contact Material - Mating
Beryllium Copper
Convert From (Adapter End)
DIP, 0.4" (10.16mm) Row Spacing
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | Textool™ |
| Packaging | Box |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.070" (1.78mm) |
| Mounting Type | Through Hole |
| Number of Pins | 28 |
| Pitch - Mating | 0.070" (1.78mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Base Product Number | 228 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.130" (3.30mm) |
| Convert To (Adapter End) | DIP, 0.4" (10.16mm) Row Spacing |
| Contact Material - Mating | Beryllium Copper |
| Convert From (Adapter End) | DIP, 0.4" (10.16mm) Row Spacing |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
