Step1: Product

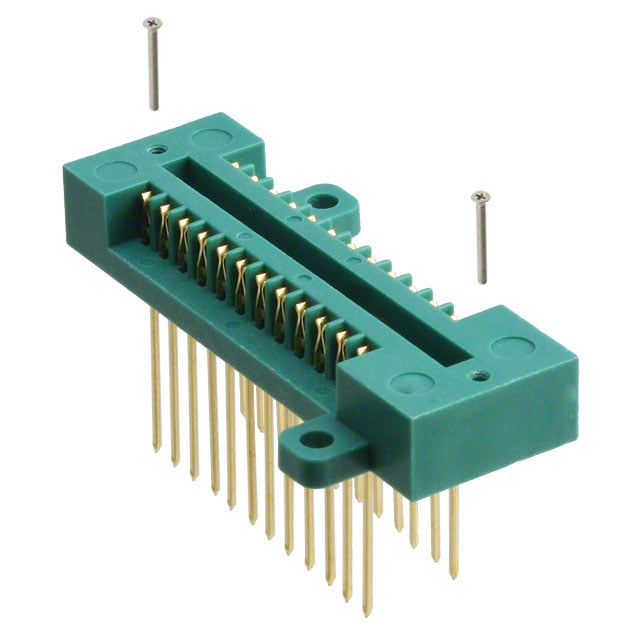

3M 224-5248-19-0602J
Image shown is a representation only
Manufacturer
Manufacturer No
224-5248-19-0602J
Packaging
Box
Description
RECEPTACLE DIP SOCKET 24POS .3"
Detailed Description
IC Socket Adapter DIP, 0.3" (7.62mm) Row Spacing To DIP, 0.3" (7.62mm) Row Spacing Through Hole
DataSheet
Series
Textool™
Packaging
Box
Part Status
Active
Termination
Solder
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Number of Pins
24
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polysulfone (PSU), Glass Filled
Base Product Number
224
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Convert To (Adapter End)
DIP, 0.3" (7.62mm) Row Spacing
Contact Material - Mating
Beryllium Copper
Convert From (Adapter End)
DIP, 0.3" (7.62mm) Row Spacing
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | Textool™ |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Number of Pins | 24 |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Base Product Number | 224 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Convert To (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing |
| Contact Material - Mating | Beryllium Copper |
| Convert From (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
