Step1: Product

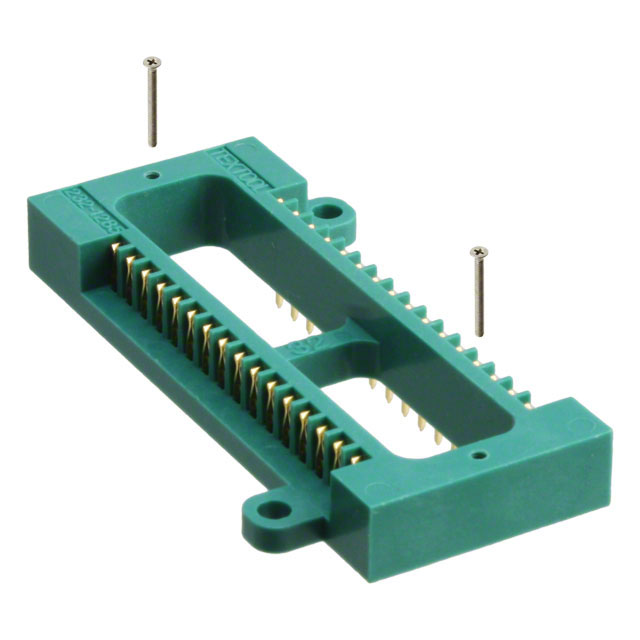

3M 232-1285-09-0602J
Image shown is a representation only
Manufacturer
Manufacturer No
232-1285-09-0602J
Packaging
Box
Description
RECEPTACLE DIP SOCKET 32POS .6"
Detailed Description
IC Socket Adapter DIP, 0.6" (15.24mm) Row Spacing To DIP, 0.6" (15.24mm) Row Spacing Through Hole
DataSheet
Series
Textool™
Features
Closed Frame
Packaging
Box
Part Status
Obsolete
Termination
Solder
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Number of Pins
32
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polysulfone (PSU), Glass Filled
Base Product Number
232
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.130" (3.30mm)
Convert To (Adapter End)
DIP, 0.6" (15.24mm) Row Spacing
Contact Material - Mating
Beryllium Copper
Convert From (Adapter End)
DIP, 0.6" (15.24mm) Row Spacing
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | Textool™ |
| Features | Closed Frame |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Number of Pins | 32 |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Base Product Number | 232 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.130" (3.30mm) |
| Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Contact Material - Mating | Beryllium Copper |
| Convert From (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
