Step1: Product

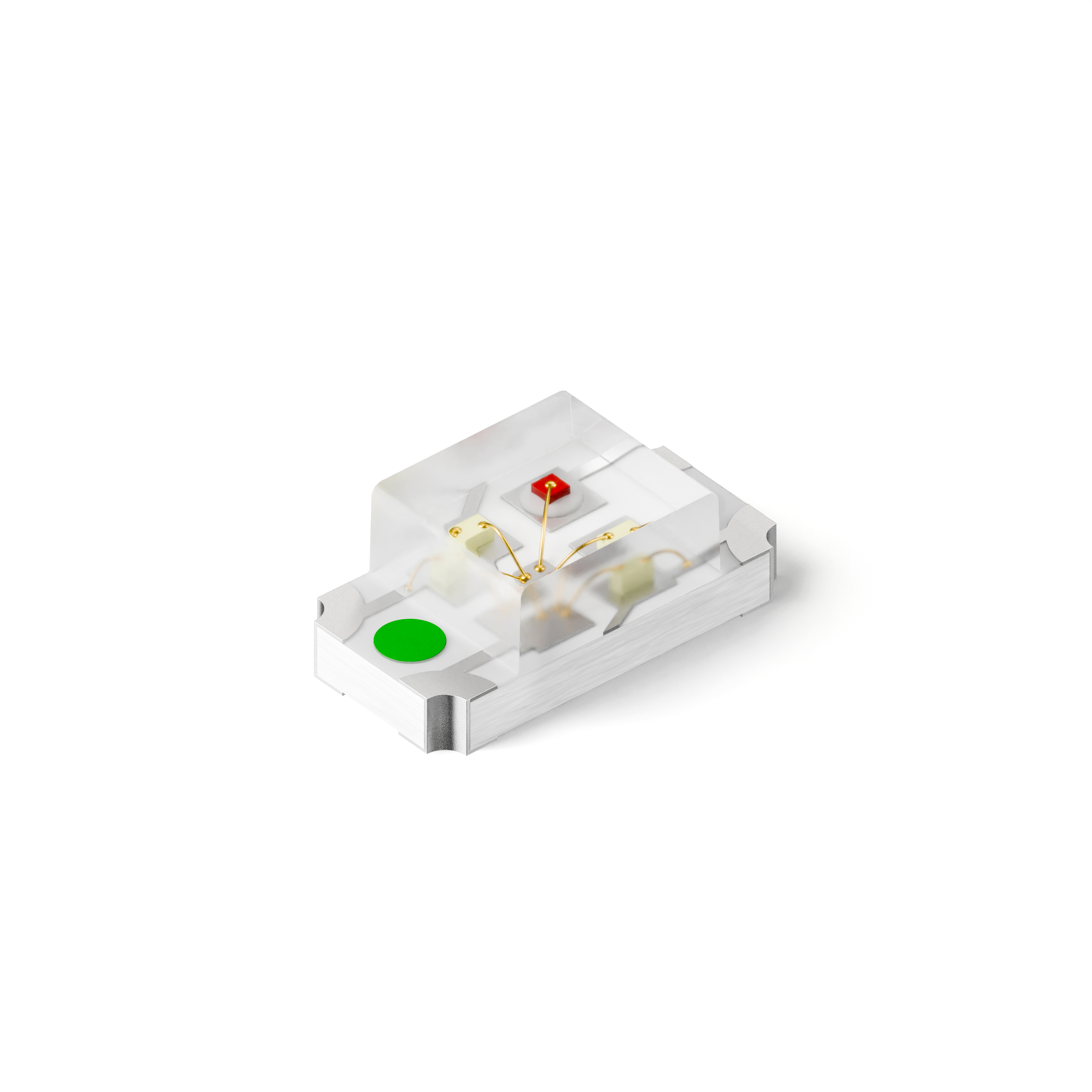

XINGLIGHT XL-3216RGBC
Image shown is a representation only
Manufacturer
Manufacturer No
XL-3216RGBC
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED 1206 RGB SMD
Detailed Description
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 1206 (3216 Metric)
DataSheet
Mfr
XINGLIGHT
Color
Red, Green, Blue (RGB)
Series
1206
Lens Size
2.05mm x 1.60mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
1.05mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.60mm W
Lens Transparency
Clear
Wavelength - Peak
625nm Red, 525nm Green, 465nm Blue
Millicandela Rating
150mcd Red, 550mcd Green, 180mcd Blue
Wavelength - Dominant
625nm Red, 525nm Green, 465nm Blue
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2.1V Red, 3.1V Green, 3.1V Blue
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Red, Green, Blue (RGB) |
| Series | 1206 |
| Lens Size | 2.05mm x 1.60mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 1.05mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 625nm Red, 525nm Green, 465nm Blue |
| Millicandela Rating | 150mcd Red, 550mcd Green, 180mcd Blue |
| Wavelength - Dominant | 625nm Red, 525nm Green, 465nm Blue |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
