Step1: Product

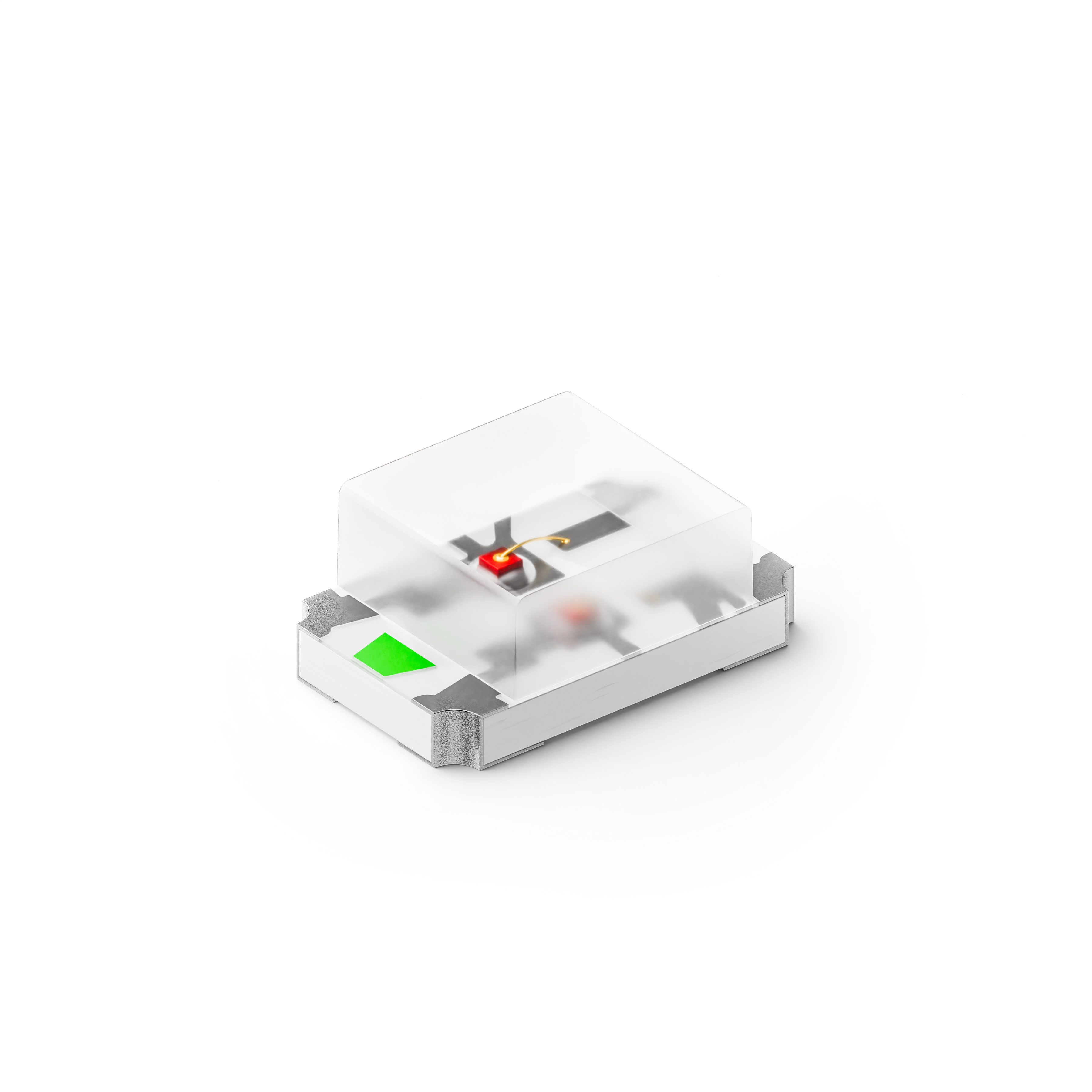

XINGLIGHT XL-2012SURSYGC
Image shown is a representation only
Manufacturer
Manufacturer No
XL-2012SURSYGC
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED 0805 RED,YLW-GRN SMD
Detailed Description
Red, Yellow-Green 625nm Red, 570nm Yellow-Green LED Indication - Discrete 2.1V Red, 2.1V Yellow-Green 0805 (2012 Metric)
DataSheet
Mfr
XINGLIGHT
Color
Red, Yellow-Green
Series
0805
Lens Size
1.30mm x 1.25mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.90mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Yellow-Green
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 4.20mm W
Lens Transparency
Diffused
Wavelength - Peak
620nm Red, 570nm Yellow-Green
Millicandela Rating
450mcd Red, 270mcd Yellow-Green
Wavelength - Dominant
625nm Red, 570nm Yellow-Green
Voltage - Forward (Vf) (Typ)
2.1V Red, 2.1V Yellow-Green
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Red, Yellow-Green |
| Series | 0805 |
| Lens Size | 1.30mm x 1.25mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.90mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Yellow-Green |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 4.20mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 620nm Red, 570nm Yellow-Green |
| Millicandela Rating | 450mcd Red, 270mcd Yellow-Green |
| Wavelength - Dominant | 625nm Red, 570nm Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.1V Yellow-Green |
